General Information: Notes

Information

This repair method is a cost-effective repair that may have quality implications. To achieve the best repair result, always use the tool recommended by Porsche and attend the special training courses run by the tool/system suppliers.

Information

Some damage cannot be worked back into shape using this method because of reinforced or bonded body parts. Each area of damage must be assessed individually.

Dents in sheet steel and aluminum panels caused by hail, bumps when parking (knocks against edge of door), chestnuts and so forth can be rectified by dent repairs using the reshaping methods. With this method, dents are pressed out point-by-point from behind the metal panel using special dent removal tools and then polished.

Dent removal sets: Dent repair pry tool VAS 6332 XL Profi pry tool set WE 1358 , Dent repair pry tool VAS 6333 WE 1359 , Dent repair pry tool VAS 6334 WE 1360

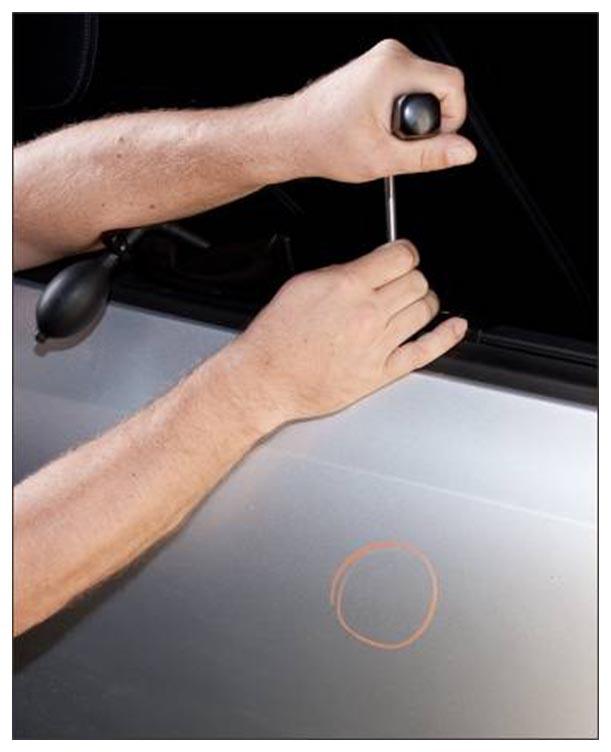

Fig 1: Repairing Door Dent

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

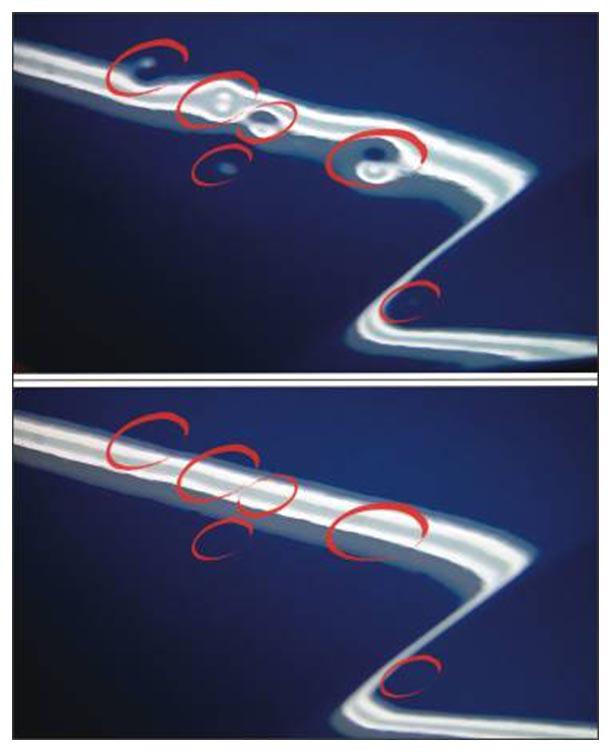

The progress of the repair is assessed using the reflected lines of a neon lamp on the outer side of the metal panel. → Before and after

Fig 2: Identifying Dent On Door (Before And After Repairing)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Small dents that are not accessible from the rear can be 'pulled out' using bonding techniques dent repair removal tool VAS 6364 WE 1361 if the strength of the adhesive bond and the adhesion of the paint work allow. To this end, an adhesive adapter is stuck to the center of the dent with a special adhesive. The dent is pulled out carefully in a controlled manner using a slide hammer puller.
