Technical Values
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|

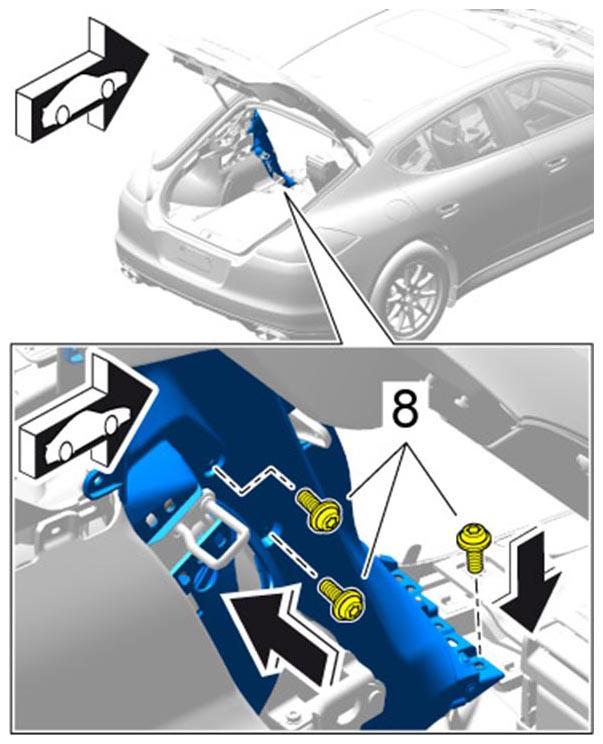

| Fastening screws securing front part of trim panel for C-pillar | Item 8/top | Tightening torque | 1.7 Nm | ||
|
Securing front part of C-pillar trim panel |
|||||

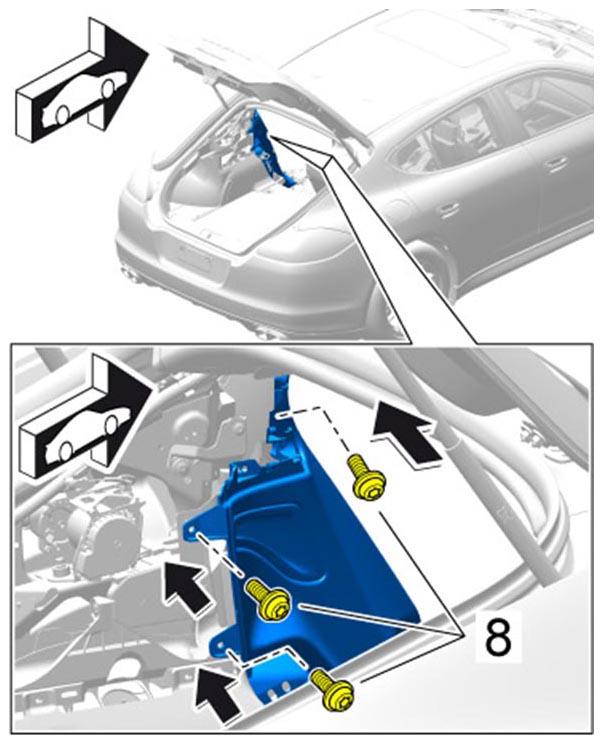

| Fastening screws securing front part of trim panel for C-pillar | Item 8/bottom | Tightening torque | 1.7 Nm | ||
|
Securing front part of C-pillar trim panel at the bottom |
|||||

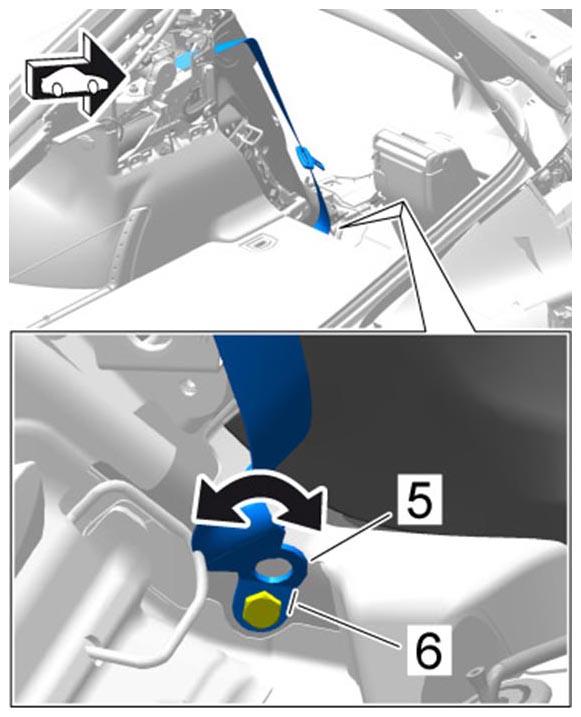

| Fastening screw securing belt fitting to body | Tightening torque | 50 Nm (37 ftlb.) | |||
|
Securing belt fitting |
|||||

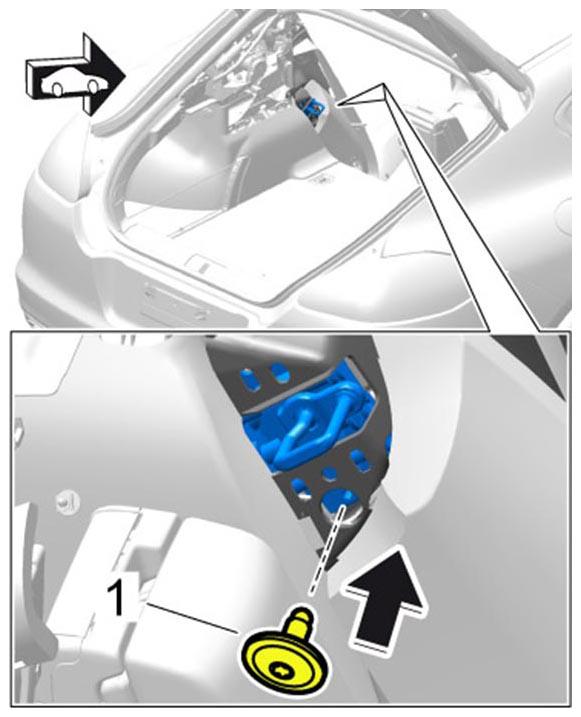

| Fastening screw for backrest panel | Item 1 | Tightening torque | 10 Nm (7.5 ftlb.) | +/-1 Nm (+/- 0.5 ftlb.) | |
|
Securing backrest side panel |
|||||

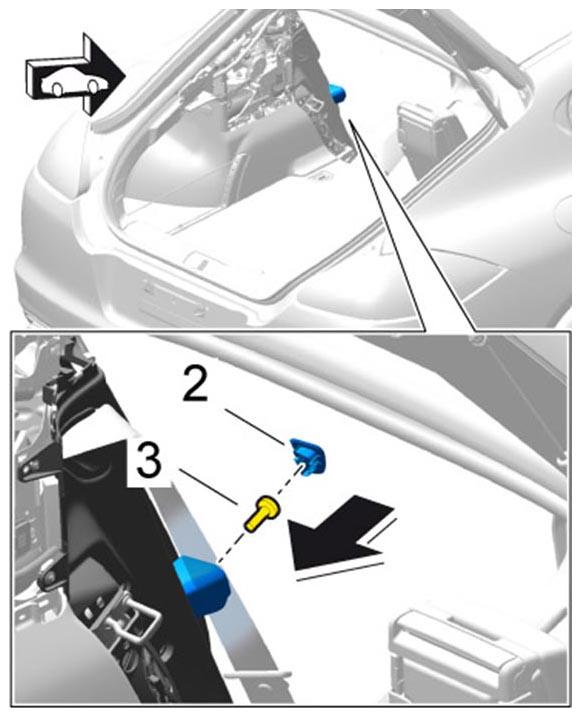

| Fastening screw for armrest extension | Item 3 | Tightening torque | 5.5 Nm (4 ftlb.) | ||
|
Securing armrest extension |
|||||

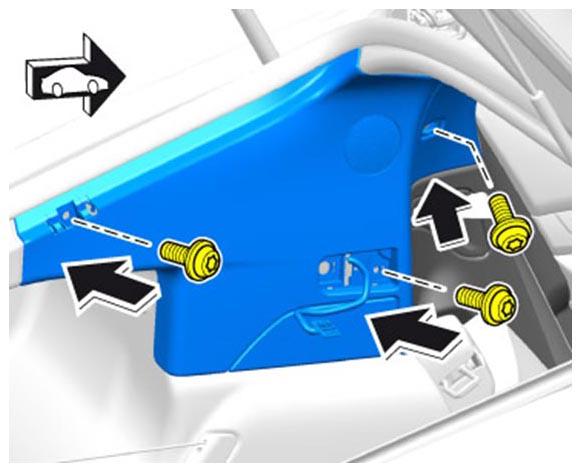

| Fastening screw securing rear part of trim panel for C-pillar | Tightening torque | 5.5 Nm (4 ftlb.) | |||
|
Securing rear part of C-pillar trim panel |
|||||
| Bolt for roll-up sunblind | Tightening torque | 12 Nm | |||
|
Screwing in bolt for roll-up sunblind |
|||||
