Removing Front Part Of C-Pillar Trim Panel

Information

To reduce the unclipping forces and thereby the risk of damage during removal, the removal steps must be carried out at the accessible connection points using a suitable tool.

1. Unclip cover for backrest adjustment mechanism.

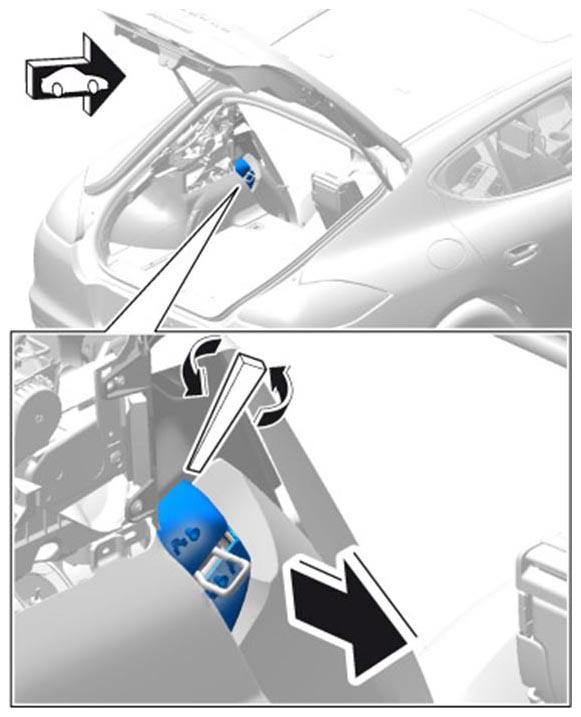

   Fig 1: Unclipping Cover For Backrest Adjustment Mechanism

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Move backrest into center position.
3. Unscrew fastening screw -1-  for backrest section.

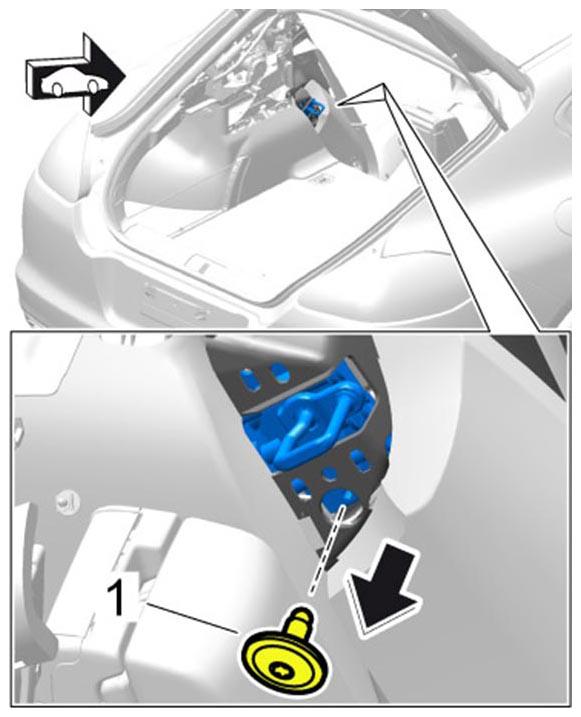

   Fig 2: Detaching Backrest Section Fastening Screw

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Swivel backrest section forward and unclip it in an upward direction.
   Fig 3: Detaching Backrest Section

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
5. Disconnect plug connection.
6. Unclip electric wire harness at the C-pillar trim panel.
7. Loosen fixing clip -C-  .
8. Release plug connections -a-  and pull them off -B-  .

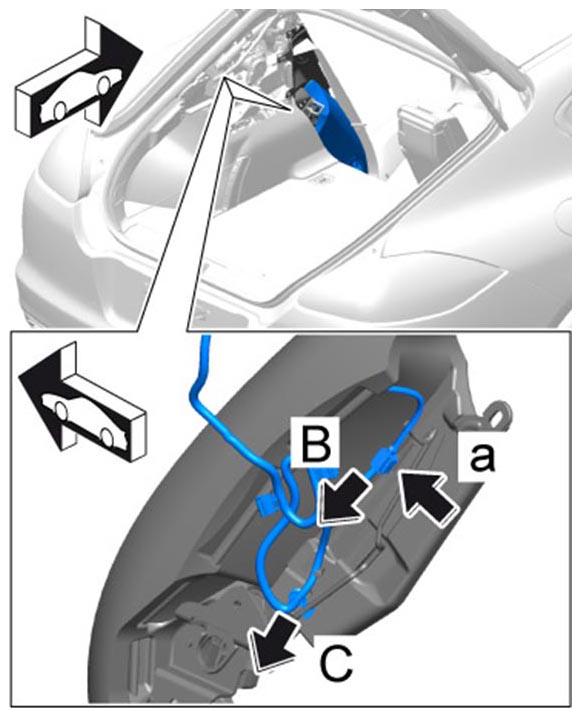

Fig 4: Releasing Plug Connection
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
9. Remove armrest extension.
   1. 9.1. Lever off cover for armrest extension -2-  .
   2. 9.2. Unscrew fastening screw -3-  .

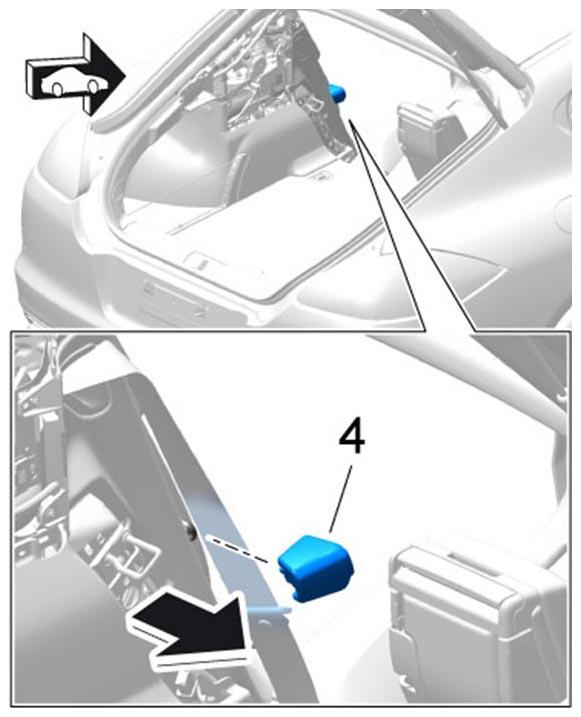

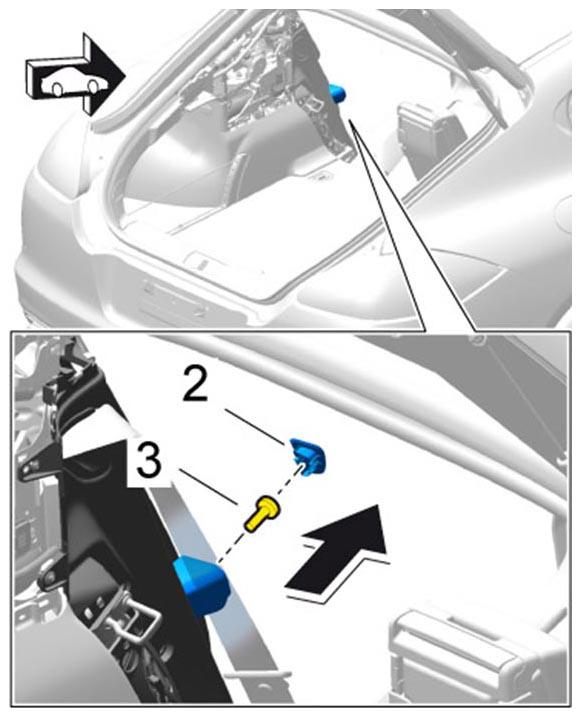

   Fig 5: Removing Armrest Extension
   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   3. 9.3. Remove armrest extension -4-  .
      Fig 6: Removing Armrest Extension

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
10. Mark installation position for belt fitting -5-  (-6-  ).

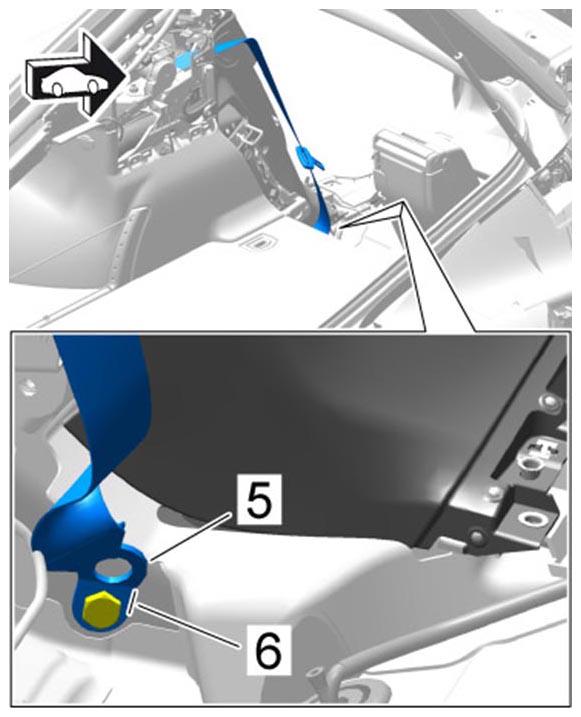

    Fig 7: Identifying Installation Position For Belt Fitting

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.
11. Unscrew fastening screw -7-  from belt fitting -5-  .

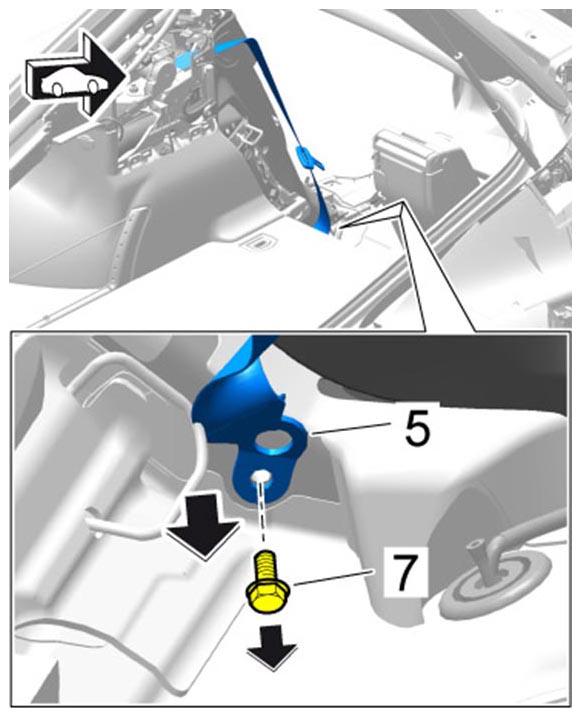

    Fig 8: Removing Belt Fitting

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.
12. Unscrew fastening screws -8-  at the top.

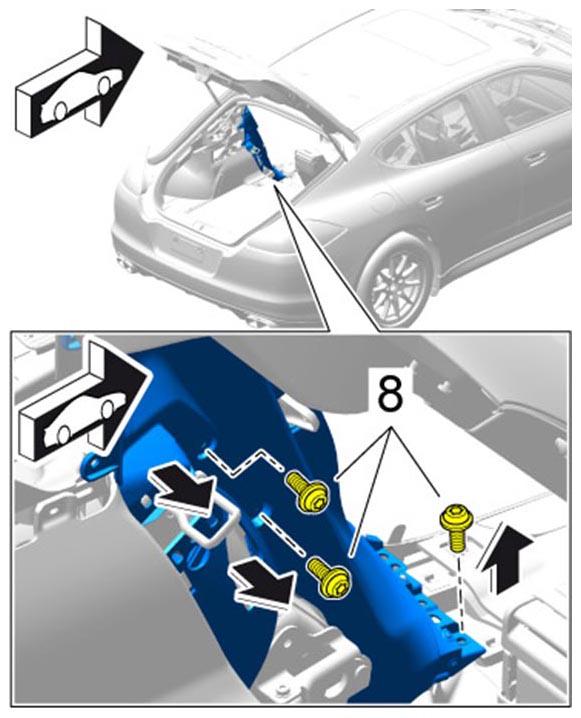

    Fig 9: Detaching Trim Panel At Top

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

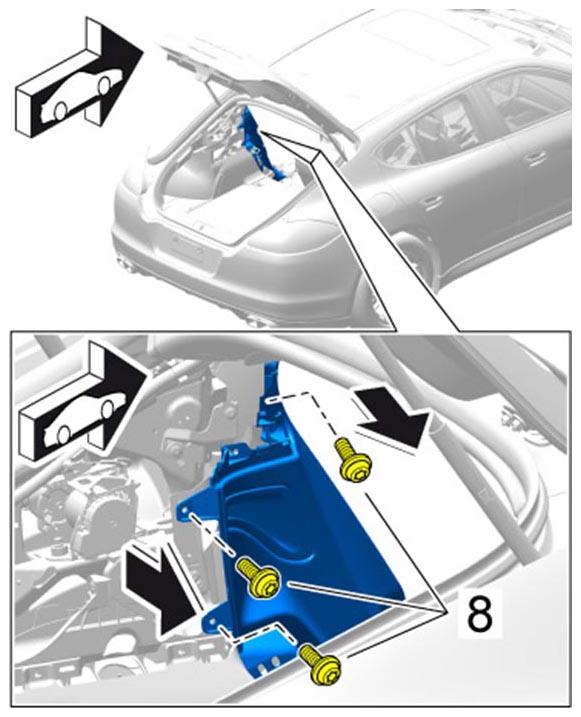

13. Unscrew fastening screws -8-  at the bottom.
    Fig 10: Detaching Trim Panel At Bottom

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.
14. Unclip front part of C-pillar trim panel.
    1. 14.1. Loosen inner fixing clips -A-  .
    2. 14.2. Loosen outer fixing clips -B-  .
    3. 14.3. Loosen fixing clips at the bottom -C-  .

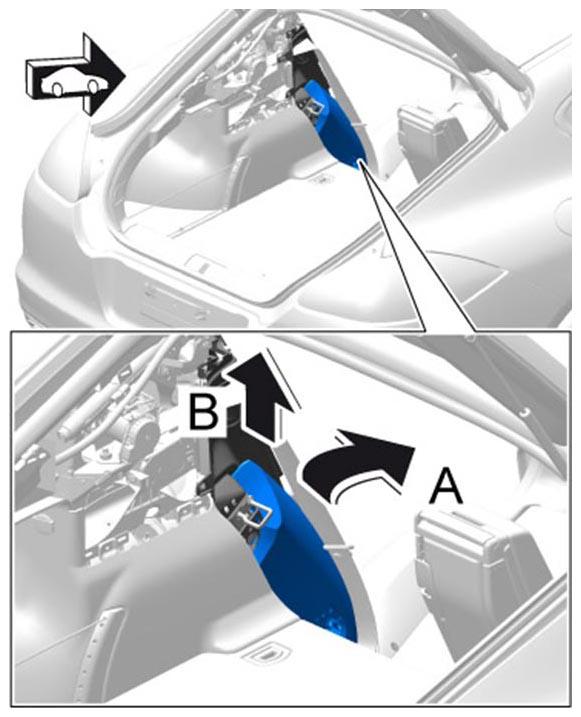

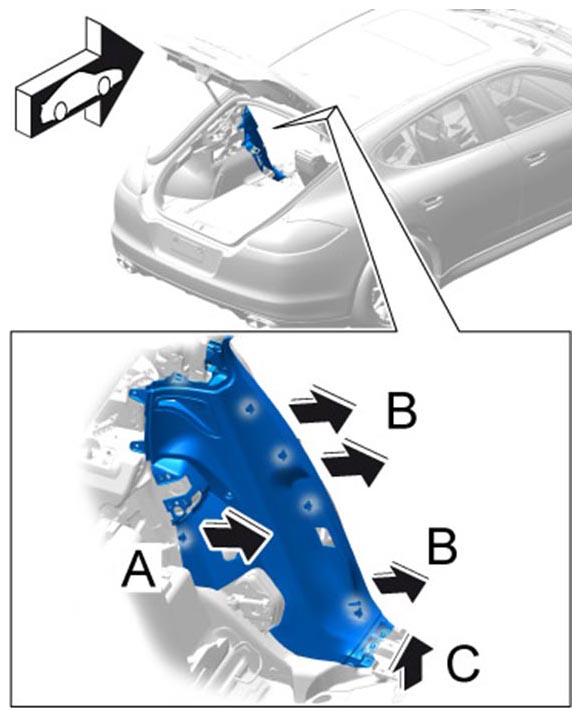

    Fig 11: Unclipping Trim Panel

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.
15. Feed the belt through the opening in the trim panel.
