WM 706719 Removing And Installing Upper Part Of B-Pillar Trim Panel (Except PANAMERA Executive, PANAMERA 4S Sport Edition, PANAMERA 4 Executive)
>>
Technical Values
Technical Values
Location
Description
Type
Basic value
Tolerance 1
Tolerance 2

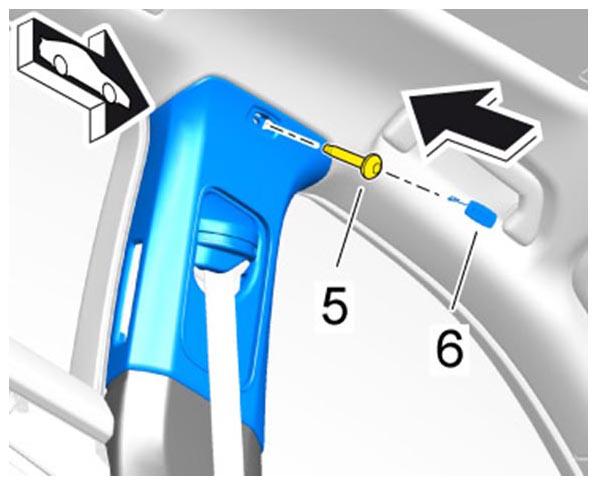

Fastening screw securing upper part to B-pillar
Item 5
Tightening torque
5.5 Nm (4 ftlb.)
Securing trim panel at the top
