Technical Values

Location Description Type Basic value Tolerance 1 Tolerance 2
Fastening screw for ventilation duct Item 1 Tightening torque 5.5 Nm (4 ftlb.)
G09812329

Securing ventilation duct
Fastening screw for armrest extension Item 2 Tightening torque 5.5 Nm (4 ftlb.)

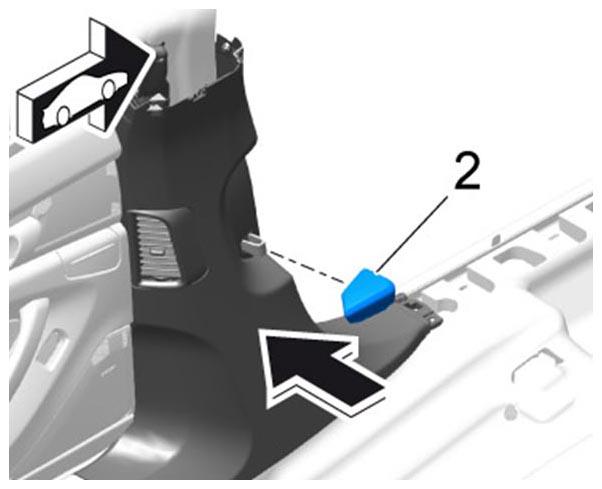

G09812330

Positioning armrest extension
