Removing Lower Part Of B-Pillar Trim Panel

Information

To reduce the unclipping forces and thereby the risk of damage during removal, the removal steps must be carried out at the accessible connection points using a suitable tool.

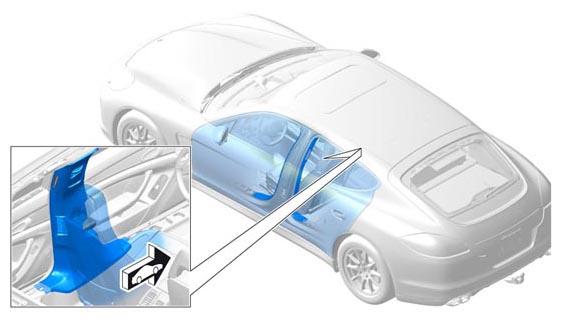

Fig 1: Identifying B-Pillar Trim Panel

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Detach mounting for armrest extension.
   1. 1.1. Lever off cover -1-  for armrest extension.
   2. 1.2. Unscrew fastening screw -2-  .

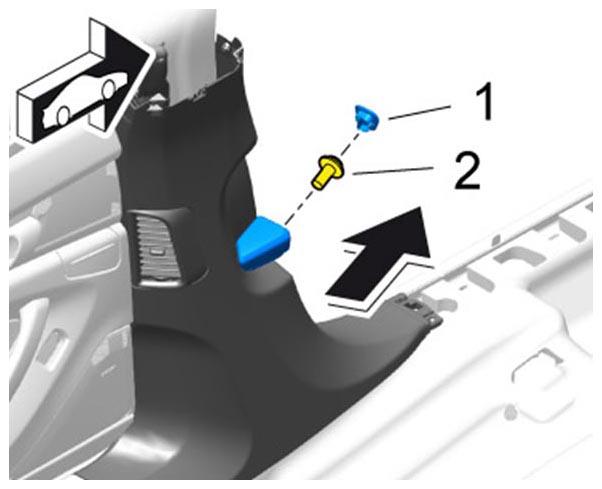

   Fig 2: Removing Armrest Extension

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Remove armrest extension -3-  .

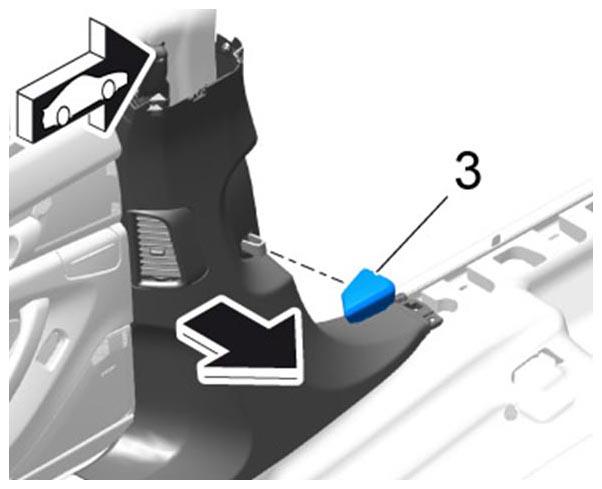

   Fig 3: Removing Armrest Extension

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Unscrew fastening screw -4-  for ventilation duct.

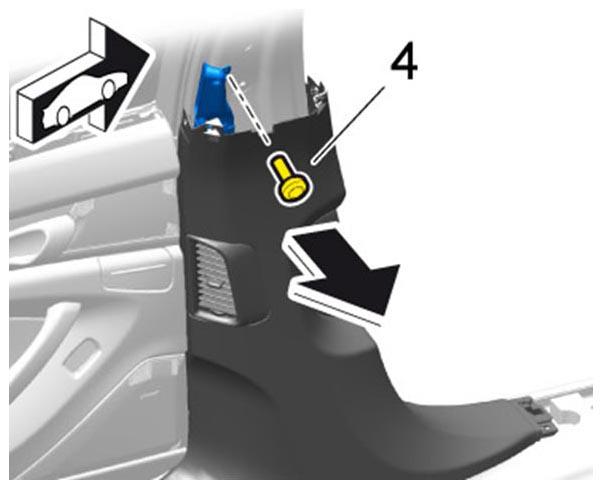

   Fig 4: Detaching Mounting For Ventilation Duct

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Detach rear part of door sill trim at the front edge.
   1. 4.1. Unclip inner locking lug -A-  .
   2. 4.2. Loosen the three front clips on the door sill trim -B-  .

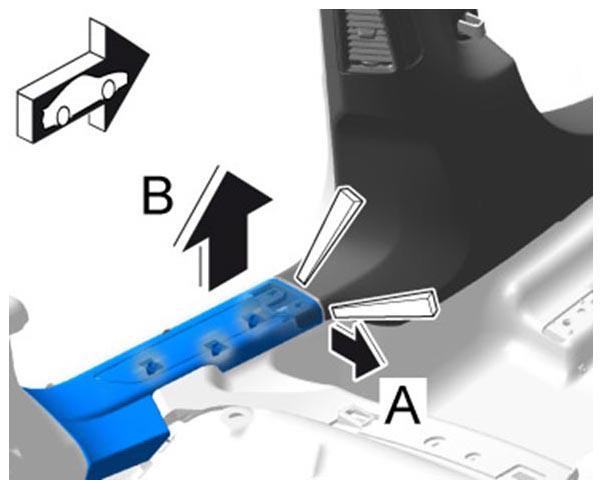

   Fig 5: Detaching Rear Part Of Door Sill Trim At Front Edge

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
5. Detach lower part of B-pillar trim panel.
   1. 5.1. Lift up rear part of door sill trim.
   2. 5.2. Swivel lower part of B-pillar trim panel down -A-  and unclip it -B-  .

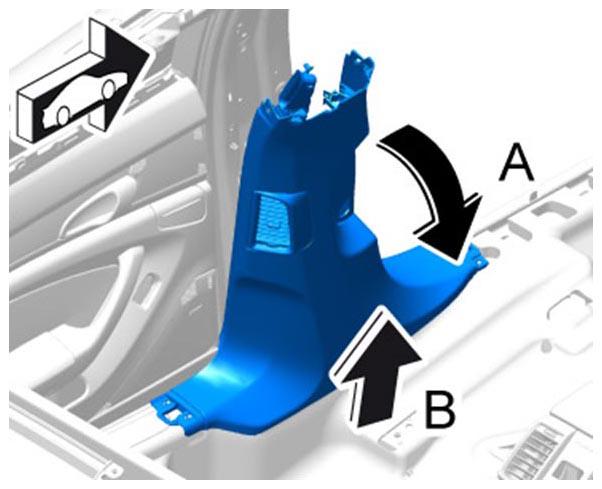

Fig 6: Detaching Lower Part Of B-Pillar Trim Panel
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
