Installing Side-Section Trim Panel

Information

Check that all fixing clips are positioned fully and correctly.

Check that the fixing clips are not bent or broken.

Replace damaged or missing clips with new ones.

Information

• Make sure that the retaining lugs are not bent or broken.
• Replace the trim panel if the retaining lugs are damaged.

1. Guide in side-section trim panel.
   1. 1.1. Push side-section trim panel into the A-pillar trim panel from below -A-  .
   2. 1.2. Push in side-section trim panel at the bottom -B-  .

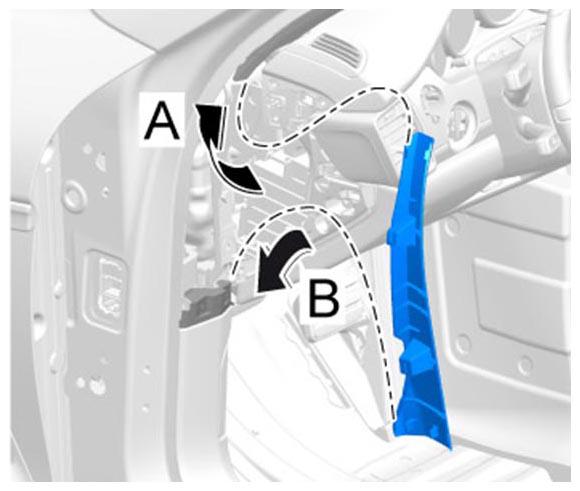

   Fig 1: Guiding In Side-Section Trim Panel

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Clip in the trim panel.
   1. 2.1. Fit fixing clips in the cut-out in the middle of the trim panel.
   2. 2.2. Clip in fixing clips -A-  .
   3. 2.3. Clip trim panel into the door sill trim -B-  .
   4. 2.4. Clip trim panel into the A-pillar trim panel -C-  .

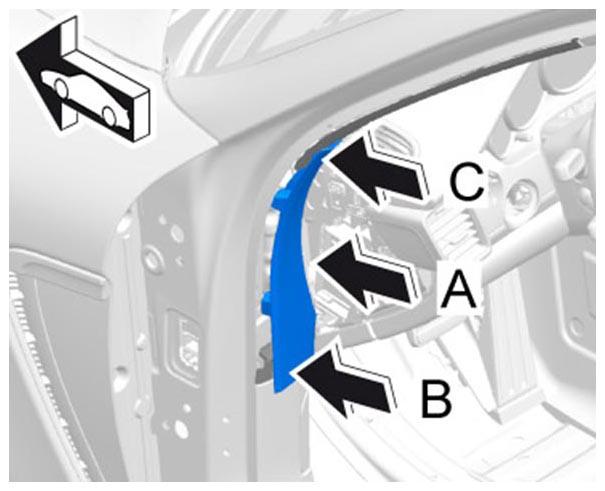

   Fig 2: Clipping In Trim Panel

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
