Positioning Cover In The Footwell

Information

Guide pins -2-  are pulled out of the fittings when you unclip the cover.

  1. Pull the cover down -arrow-  and unclip locking lugs -1-  .
  2. Pull out cover for footwell.

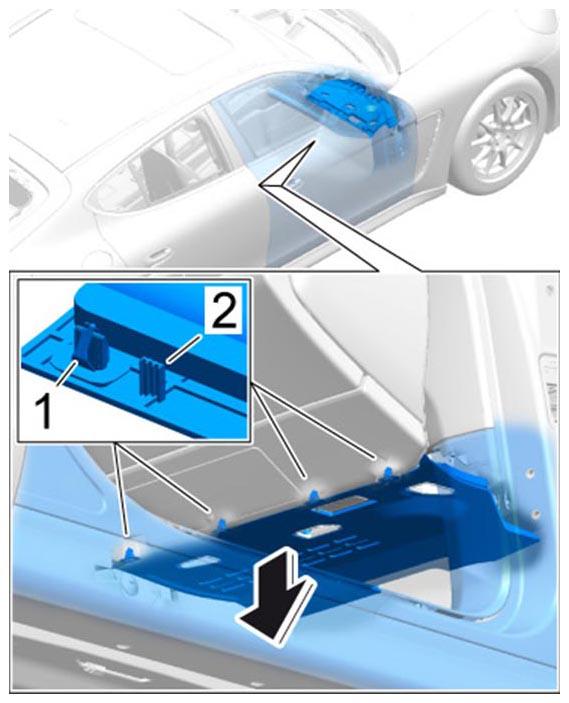

    Fig 1: Removing Cover At Passenger's Side
    G09812236Courtesy of PORSCHE CARS NORTH AMERICA, INC.
