Technical Values

Location Description Type Basic value Tolerance 1 Tolerance 2
Fastening screws to trim panel Torx screw Tightening torque 3.2 Nm
Transverse strut to trim panel Hexagon-head bolt Tightening torque 8.0 Nm (6 ftlb.)

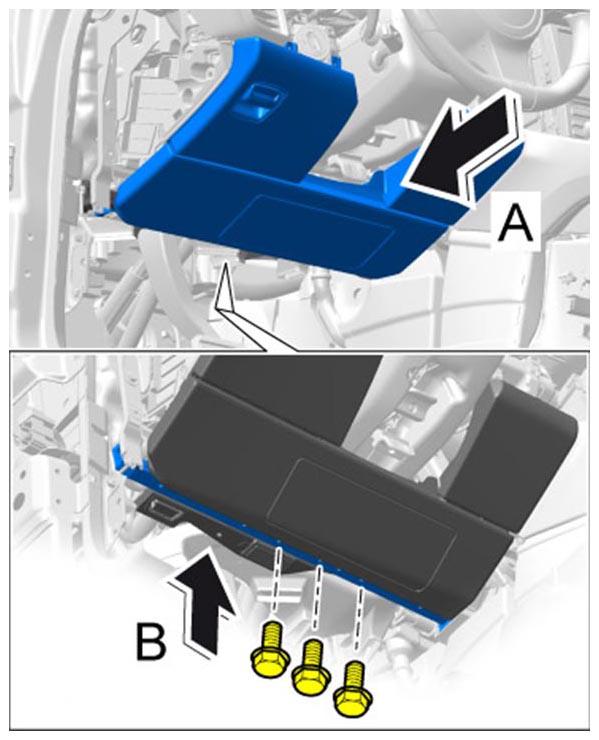

G09812218

Fitting trim panel to transverse strut
