WM 701819 Removing And Installing Dashboard (Except PANAMERA Executive, PANAMERA 4S Sport Edition, PANAMERA 4 Executive)
>>
Technical Values
Technical Values
Location
Description
Type
Basic value
Tolerance 1
Tolerance 2
Fastening screws for switch panel
Tightening torque
3.2 Nm
Tightening fastening screws

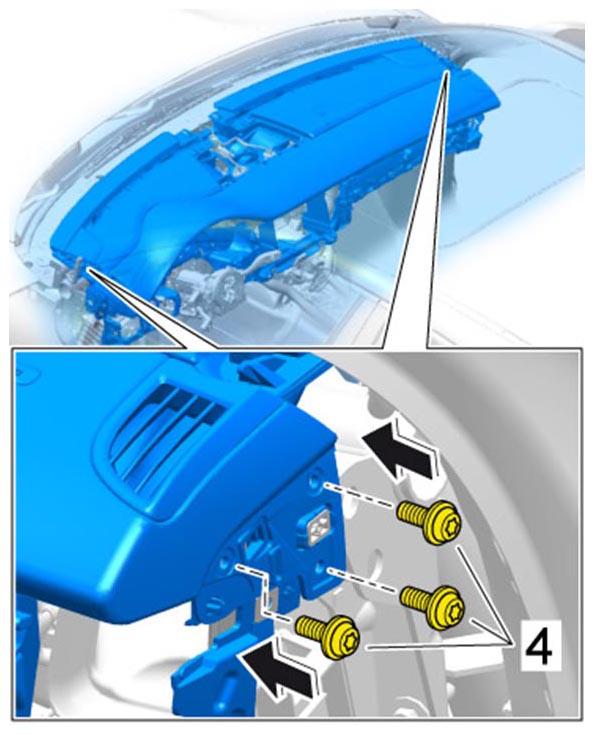

Lateral fastening screws
Item 4
Tightening torque
3.2 Nm
Tightening lateral fastening screws
