Removing Dashboard Trim Panel At The Passenger's Side

Information

• The number of fastening screws, fixing clips, plug connections, holders and trim panels can vary depending on equipment.
• The illustrations for removing and installing the drive mechanism are shown only on one equipment variant and may differ from the actual equipment variant.
• Some steps must be carried out automatically.
• Some of the repair illustrations show only one side of the vehicle.

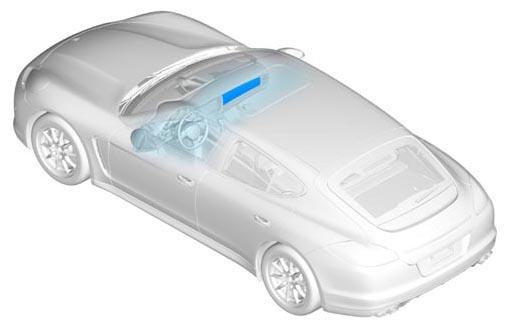

  Fig 1: Identifying Dashboard Trim Panel At Passenger'S Side

  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Fit the plastic wedge on the left side.

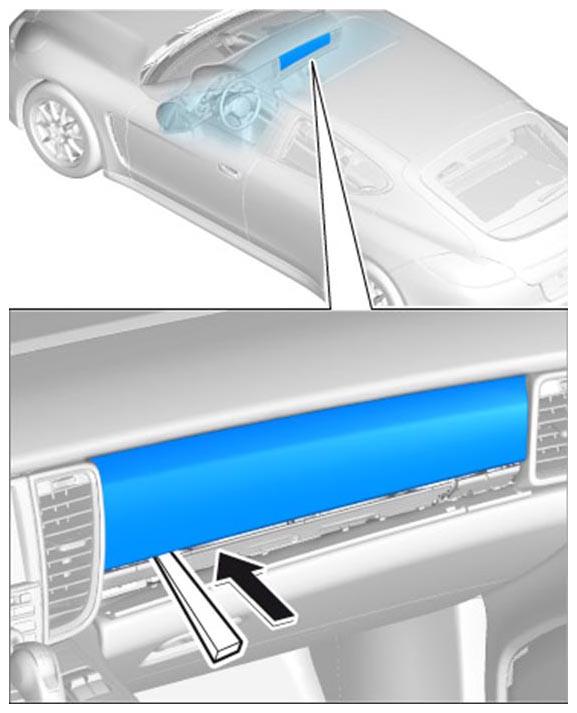

   Fig 2: Fitting Plastic Wedge At Left

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Guide the plastic wedge in as far as the upper edge.
3. Turn the plastic wedge towards the inside of the vehicle until all clips are loosened.

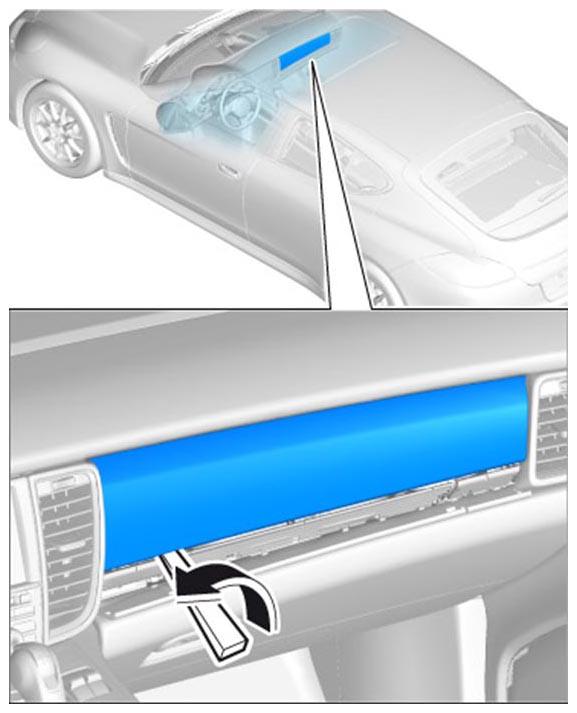

   Fig 3: Turning Plastic Wedge

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Guide the plastic wedge in as far as it will go on the right side.

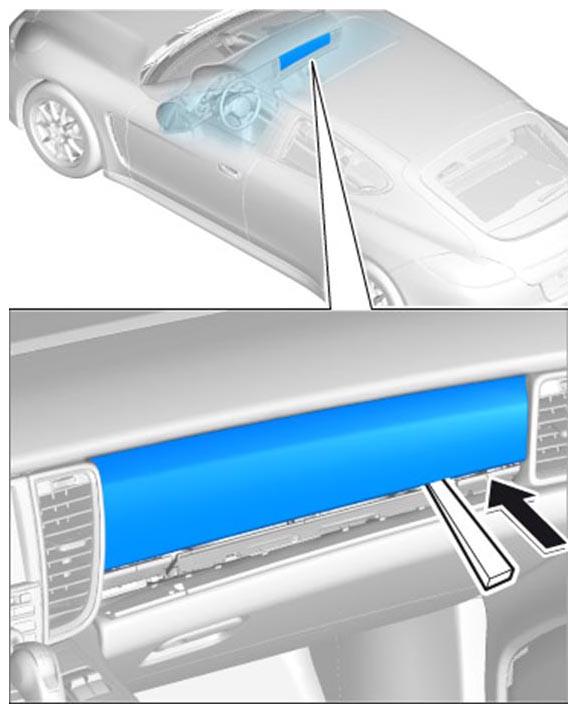

   Fig 4: Fitting Plastic Wedge At Right

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
5. Carefully turn the plastic wedge towards the inside of the vehicle until all clips are loosened. Be careful with the upper right clip.

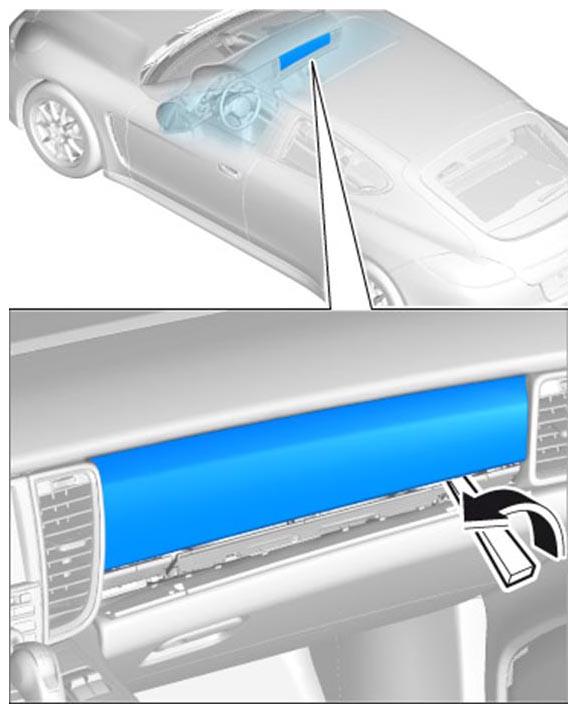

   Fig 5: Turning Plastic Wedge

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
6. Remove trim.

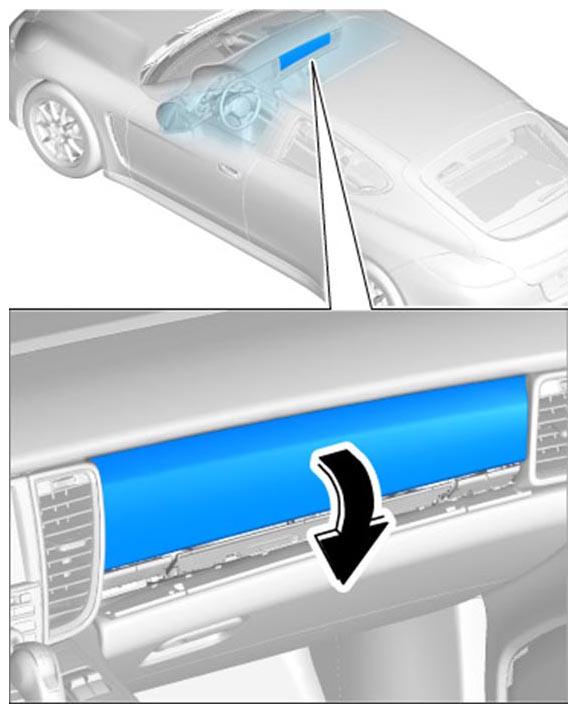

   Fig 6: Removing Trim

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
