Technical Values
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|
| Fastening screw for door hinge | Door side | Tightening torque | 33 Nm (24 ftlb.) | +/-0.3 Nm (+/-0.2 ftlb.) | |
|

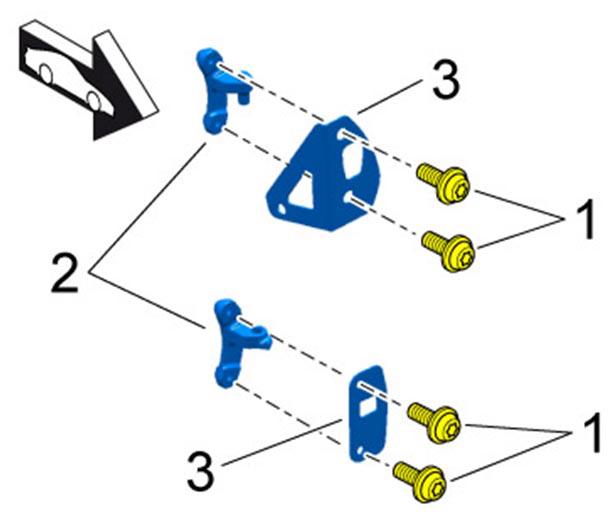

Component overview |
|||||
| Fastening nuts for door hinge | Body side | Tightening torque | 33 Nm (24 ftlb.) | +/-0.3 Nm (+/-0.2 ftlb.) | |
|

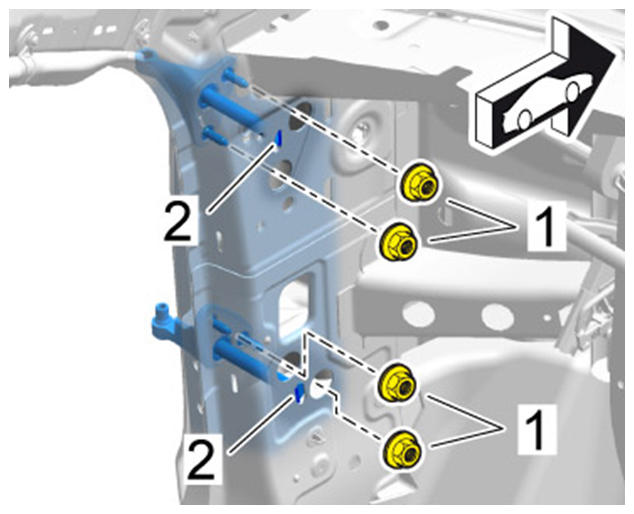

Installing front door hinge on body side |
|||||
