Technical Values
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|

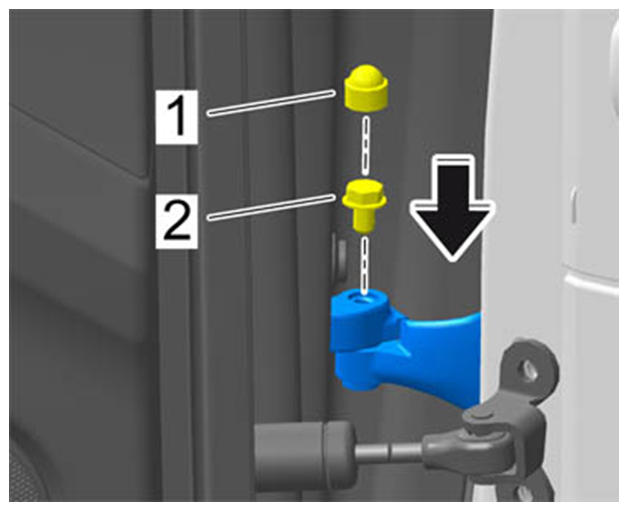

| Fastening screw for upper hinge | Tightening torque | 28 Nm (21 ftlb.) | |||
|
Fastening screws on hinge |
|||||

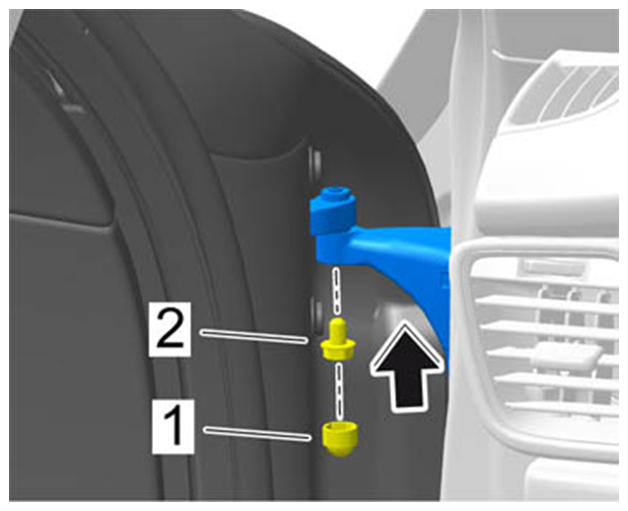

| Fastening screw for lower hinge | Tightening torque | 28 Nm (21 ftlb.) | |||
|
Pressing on plastic caps |
|||||

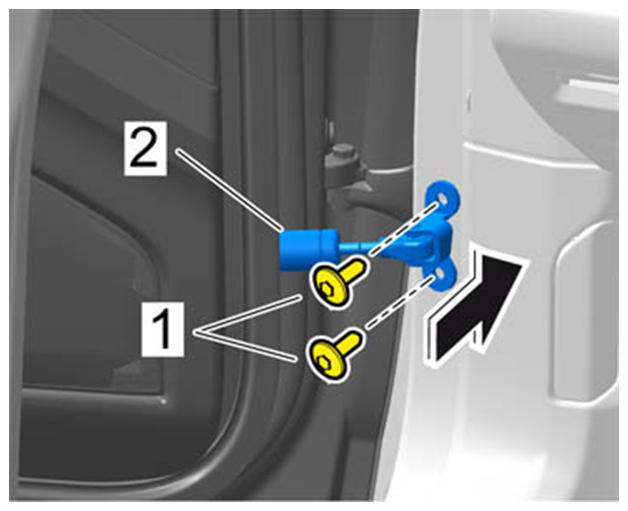

| Fastening screw for door arrester | Tightening torque | 33 Nm (24 ftlb.) | |||
|
Securing door arrester |
|||||
