Installing Striker Pin

  1. Screw in fastening screws -2-  .

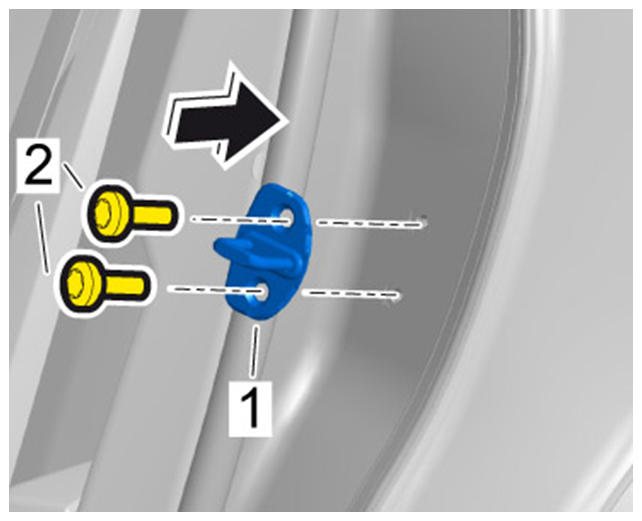

    Fig 1: Installing Striker Pin
    G09810301Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Carefully close door and check that the striker pin is positioned correctly with respect to the lock.
  3. If necessary, adjust the striker pin as required.
  4. Screw in fastening screws -2-  and tighten to the specified tightening torque → Tightening torque: 23 Nm (17 ftlb.)  .
  5. Check position of doors and make adjustments if necessary. → 575115 ADJUSTING FRONT DOOR  -
