57 - Door Front, Central Locking System -- PANAMERA (970)
>>
WM 572619 Removing And Installing Lock Peg (Except PANAMERA Executive, PANAMERA 4S Sport Edition, PANAMERA 4 Executive)
>>
Removing Lock Peg
Removing Lock Peg
Unscrew fastening screws
-2-
and remove lock peg
-1-
.

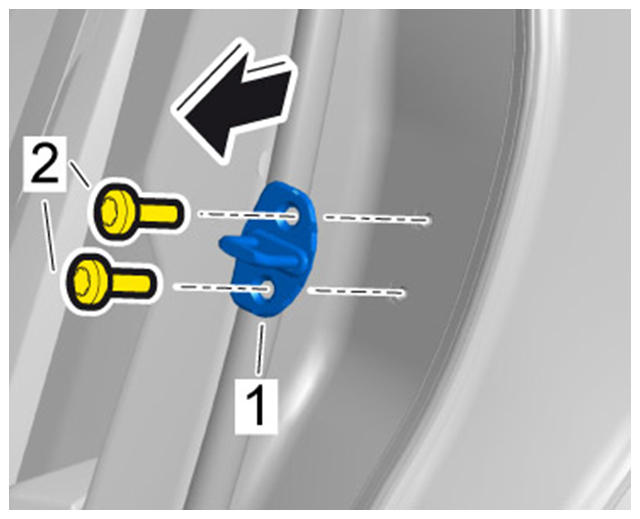

Fig 1: Removing Lock Peg
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
