Removing Console For Telephone

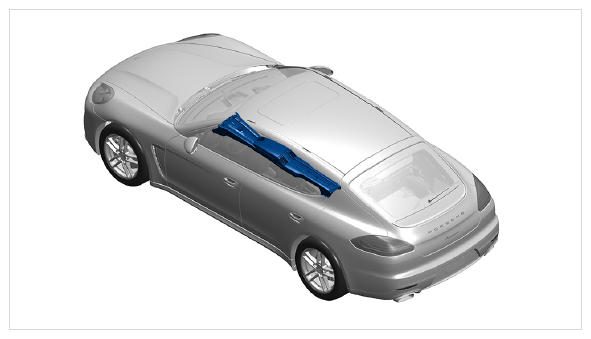

Fig 1: Identifying Telephone Console

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Installation position of console for telephone

1. Front handset console
2. Rear handset console

1. Open armrest cover.

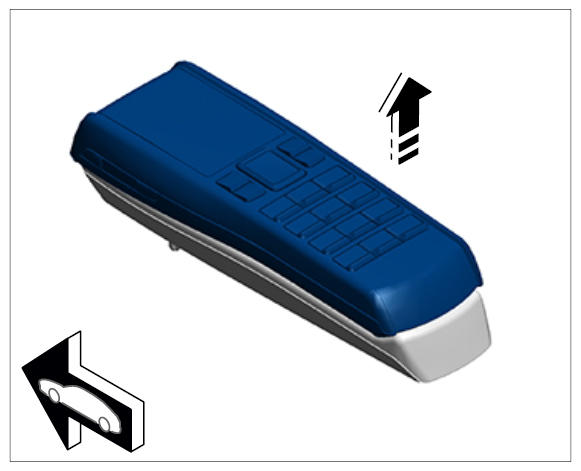

2. Lift off handset.
   Fig 2: Opening Armrest Cover

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

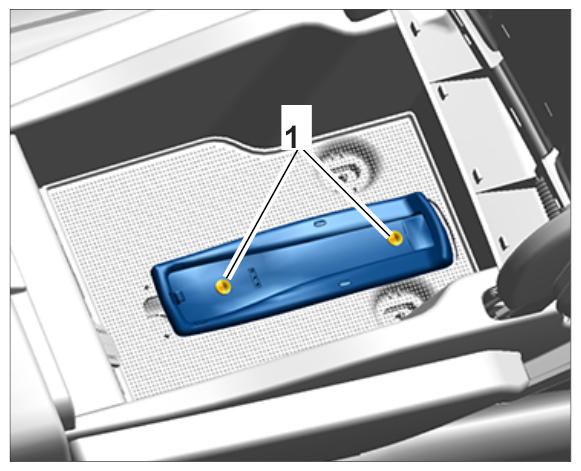

3. Lever off the two rubber stoppers -1-  .
   Fig 3: Identifying Rubber Stoppers

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

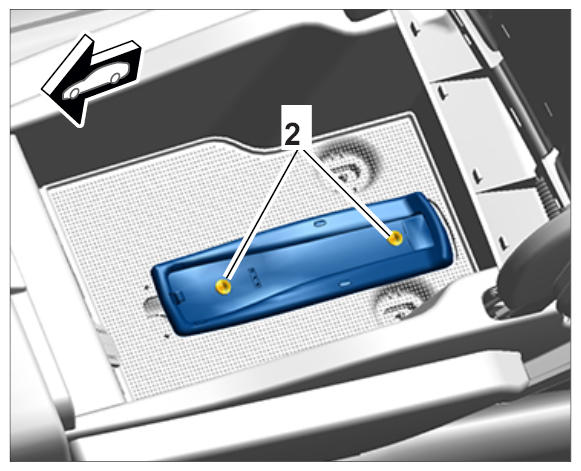

4. Unscrew both fastening screws -2-  .
   Fig 4: Identifying Console Mounting

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

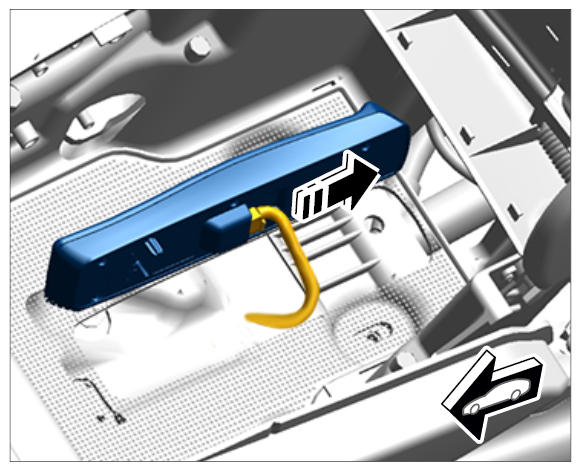

5. Lift up telephone bracket and disconnect electric plug connection.
   Fig 5: Disconnecting Electric Plug Connection

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
