Installing Console For Telephone

  1. Connect electric plug connection for telephone bracket.

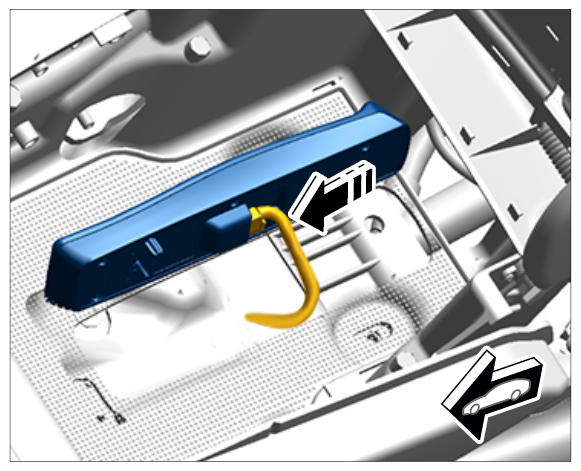

    Fig 1: Connecting Electric Plug Connection
    G09813945Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    1. 1.1. Check that the plug connection is seated securely.
  2. Place telephone console in installation position.
  3. Screw in the two fastening screws -2-  for the telephone bracket.

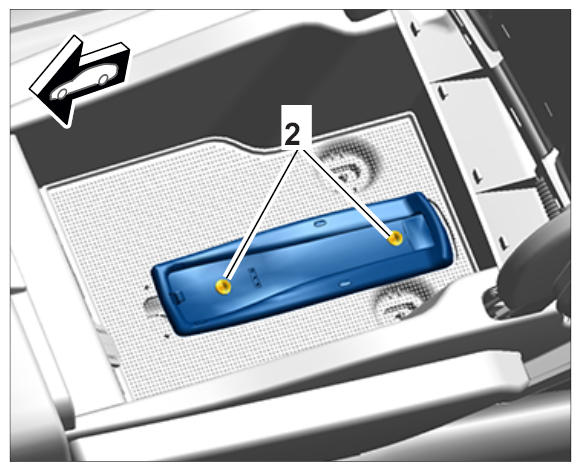

    Fig 2: Identifying Bracket Fastening Screws
    G09813946Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Fit handset onto the console until the handset engages securely.

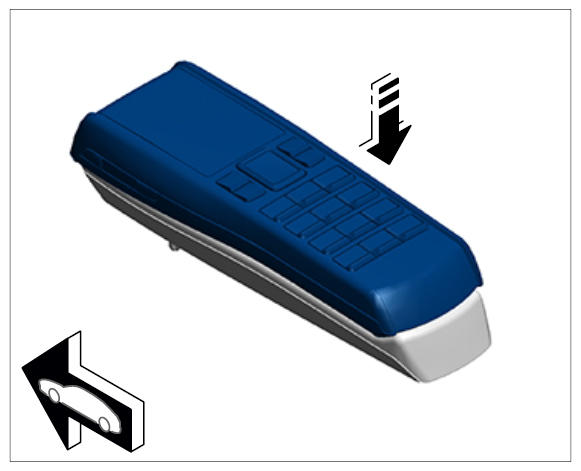

    Fig 3: Installing Console Handset
    G09813947Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  5. Close armrest cover.
