Preliminary Work
- Loosen side trim panel for rear luggage compartment at the right. → REMOVING SIDE TRIM PANEL FOR REAR LUGGAGE COMPARTMENT
Hybrid vehicles only
- Remove insert for tool kit.WARNING: High voltage at the high-voltage system on hybrid vehicles
- Danger of electric shock from live parts
- Risk of serious burns or death
- Health risks for persons with medical devices/life-support systems.
→ Before working on the high-voltage electrical system and carrying out any repair work to the body, a high-voltage technician must switch off the power to the system.
→ All work on vehicles with a high-voltage electrical system may only be carried out by electrically instructed persons. The work must be done under the instruction of a high-voltage technician.
→ Observe general warning notes for working on the high-voltage electrical system. → 2X00IN GENERAL WARNING NOTES FOR WORKING ON THE HIGH-VOLTAGE ELECTRICAL SYSTEM
- Read warning notes for working on the high-voltage system. → 2X00IN GENERAL WARNING NOTES FOR WORKING ON THE HIGH-VOLTAGE ELECTRICAL SYSTEM
- Isolate the high-voltage system and complete the relevant documentation. → 2X00IN ISOLATING HIGH-VOLTAGE ELECTRICAL SYSTEM FROM POWER SUPPLY/STARTING HIGH-VOLTAGE ELECTRICAL SYSTEM

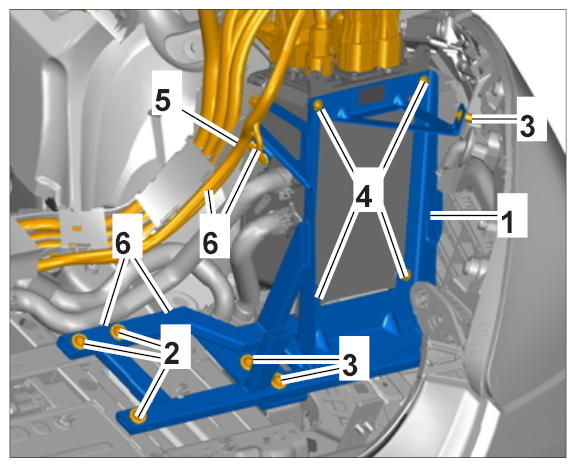

- Remove holder for high-voltage charger -1-
.
- 5.1. Unscrew fastening screws -2, 3, 4- .
- 5.2. Unclip wiring duct -5- and holders -6- for the electric lines at the holder for the high-voltage charger.
- 5.3. Remove holder for high-voltage charger.

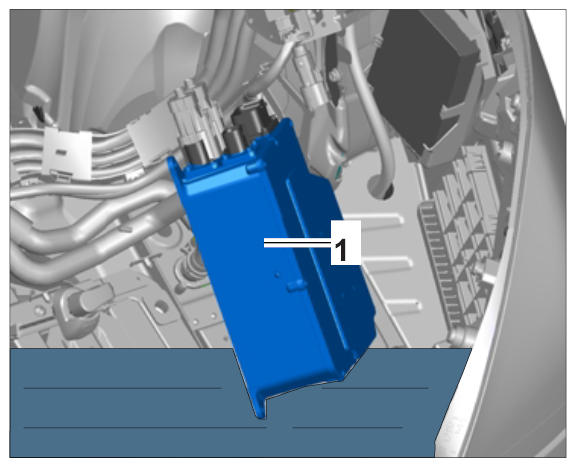

- Carefully place the high-voltage charger -1- with the connected lines and hoses aside on a clear surface.
