Preliminary Work

1. Plastic mat for right side panel, VAS 6905/1
2. Plastic mat for left side panel, VAS 6905/1
3. Plastic mat rear, VAS 6905/2
4. Plastic mat front, VAS 6905/2
Fig 1: Calibrating Surround View Camera Setup Overview
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

The following tools are required: VAS 6905 calibration system

1. Park the vehicle on a level, open surface. Surface required, approx. 9x6 m
2. Assembly of VAS 6905/3 quick-clamping holder -1-  , adapter -2-  and VAS 6350/3A line laser -3-  on right rear wheel.

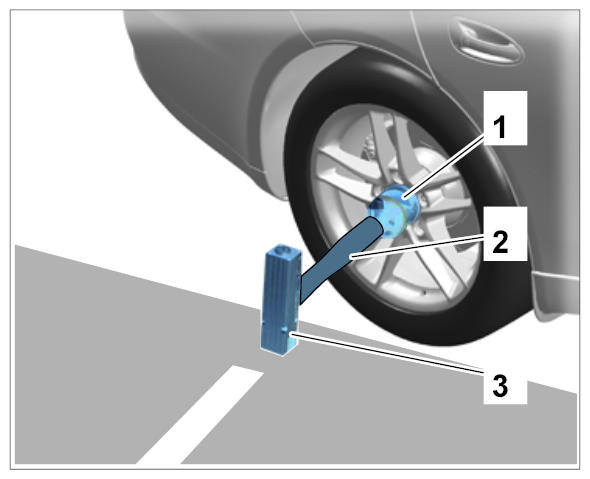

   Fig 2: Identifying Quick-Clamping Holder, Adapter And Line Laser

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Align the plastic mat for the right side panel with the right side of the vehicle.
   1. 3.1. Roll out the plastic mat for the right side panel next to the right side of the vehicle.
   2. 3.2. Longitudinal alignment: Align the right plastic mat so that the front transverse calibration line is at the height of the FA -x2-  .

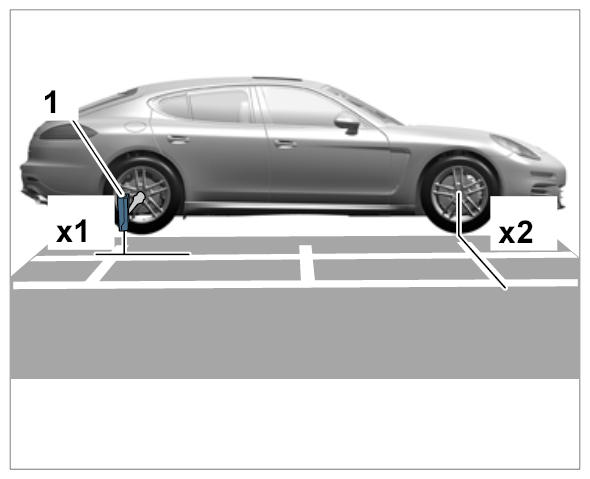

      Fig 3: Identifying Alignment Position Of Plastic Mat And Right Side Panel

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   3. 3.3. Transverse direction: Align the right side panel plastic mat so that the inner edge of the vehicle-side longitudinal calibration line is at the height of the line laser -1- -x1-  .

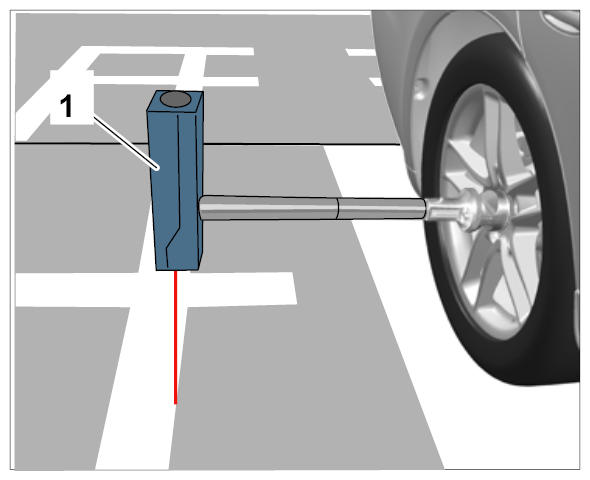

      Fig 4: Aligning Line Laser

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Position the front VAS plastic mat in front of the car, butted up to the mat for the right side panel. The calibration lines of the plastic mats -1, 4-  must be flush.

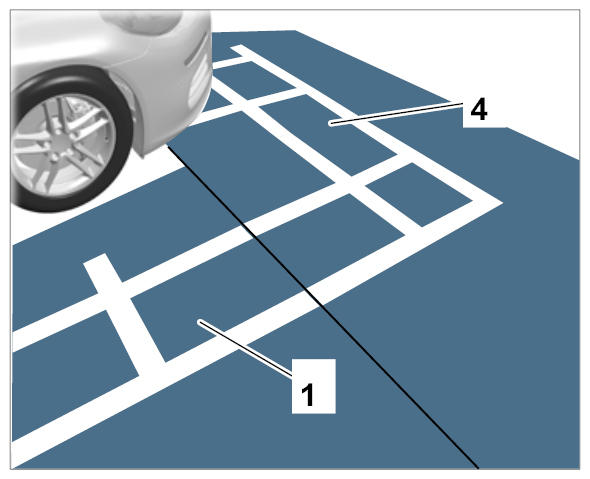

   Fig 5: Aligning Plastic Mats

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
5. Position the rear plastic mat in the same way as the front mat.
6. Rollout the left side panel plastic mat on the left side of the vehicle and butt it up to both the front and rear mats. The calibration lines of the plastic mats must be flush.
