Calibrating Surround View Camera

1. Plastic mat for right side panel, VAS 6905/1
2. Plastic mat for left side panel, VAS 6905/1
3. Plastic mat rear, VAS 6905/2
4. Plastic mat front, VAS 6905/2

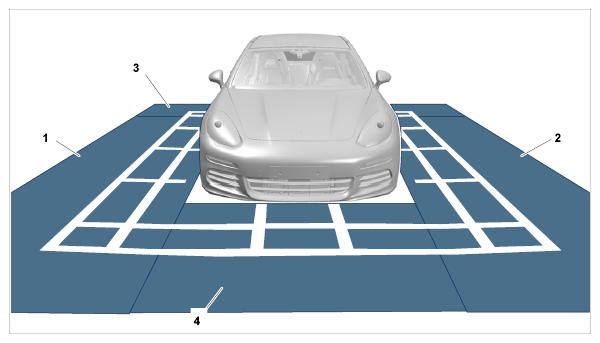

Fig 1: Calibrating Surround View Camera Setup Overview
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

→ Prior to disconnecting the control unit, switch off ignition and remove ignition key.

→ Ensure that the power supply is not interrupted during programming.

→ Connect a battery charger with a current rating of at least → Nominal value: 40 A  to the vehicle battery.

Information

The PIWIS Tester II 9818  instructions take precedence since the description may be different with later Tester releases.

The procedure described here has been structured in general terms. Different text or additional information may appear in PIWIS Tester II 9818  .

1. Connect the PIWIS Tester to the vehicle and start it. Switch on ignition. [F12] to continue.
2. Select the vehicle type and start the diagnostic application.
3. Select the Surround View  control unit in the overview  .
4. Select Maintenance/repairs Calibration  in the menu by pressing [F12].
5. Observe the warnings on the Tester.
6. Start the calibration process by pressing [F8]. The vehicle must not be moved and the plastic mats must not be covered.
7. The Tester confirms that calibration was completed successfully  .
8. Press [F12] to end the procedure.
9. Check the function and image quality of the surround view camera. → 9172K2 CALIBRATING SURROUND VIEW CAMERA
10. Read out the fault memory.
