Removing Front Camera

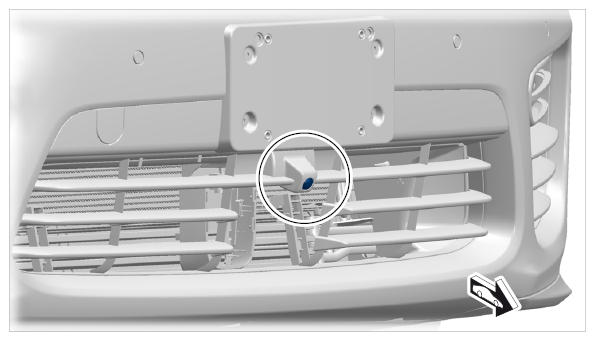

Fig 1: Identifying Front Camera

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

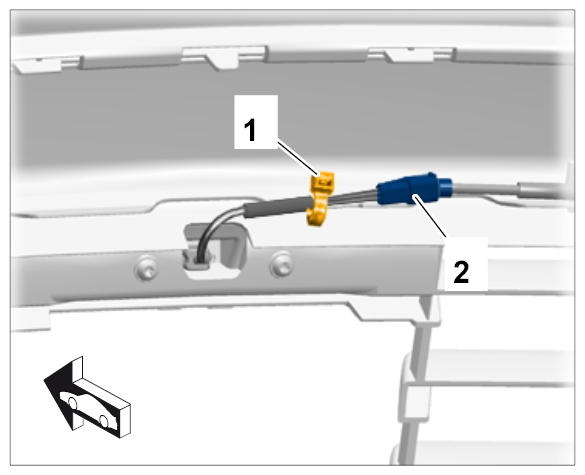

Cut tie-wrap -1- and release and pull off electric plug connection -2- .

Fig 2: Disconnecting Wiring Harness
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

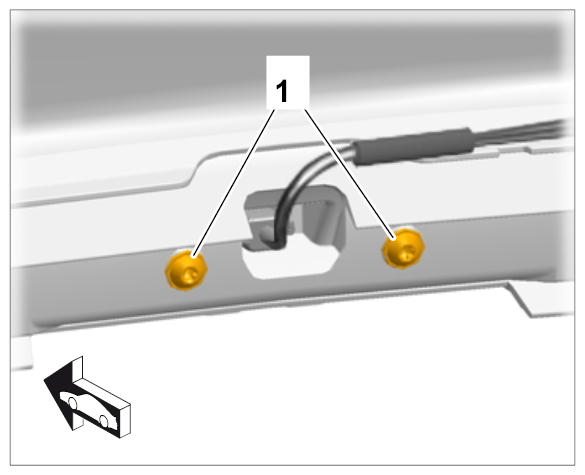

Loosen fastening screws -1- on cap on front camera.

Fig 3: Loosening Fastening Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

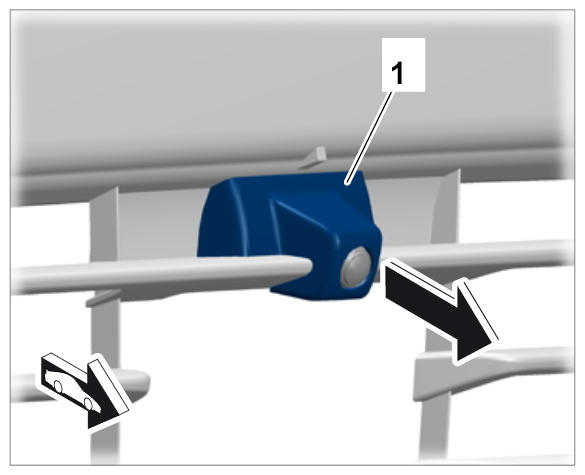

Pull cap -1- forward and off -arrow- .

Fig 4: Removing Cap
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

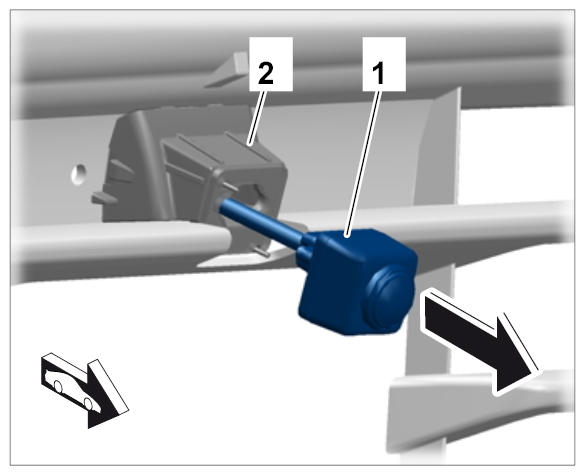

Guide camera -1- out of the front apron and camera holder -2- and pull it forward and remove it -arrow- .

Fig 5: Removing Camera
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
