Installing Side Camera

  1. Guide camera -2-  into the camera holder -1-  and rear-view mirror.

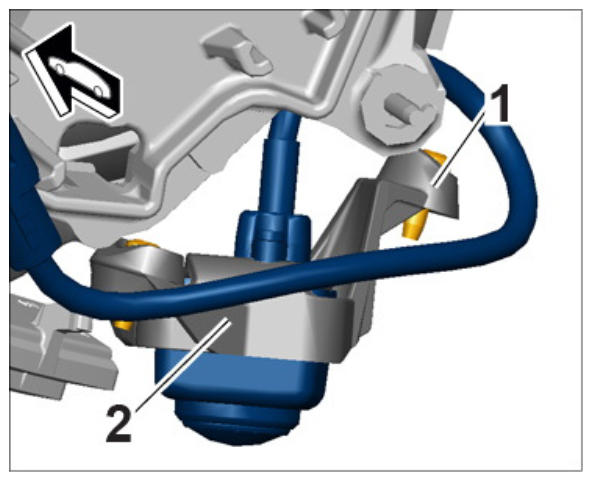

    Fig 1: Installing Camera Holder
    G09813871Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Connect electric plug connection -2-  until it engages securely.
  3. Secure electric plug connection -2-  to the rear-view mirror using tie-wraps -1-  .

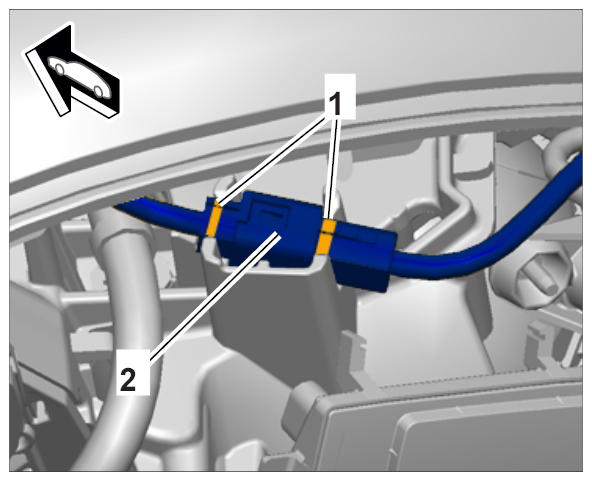

    Fig 2: Connecting Electric Plug Connection
    G09813872Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Information

    Check that the camera is positioned correctly. The camera is designed so that it cannot turn and can only be installed at one position.

  4. Also tighten fastening screws -1-  used to secure camera holder -2-  to lower part of rear-view mirror housing.

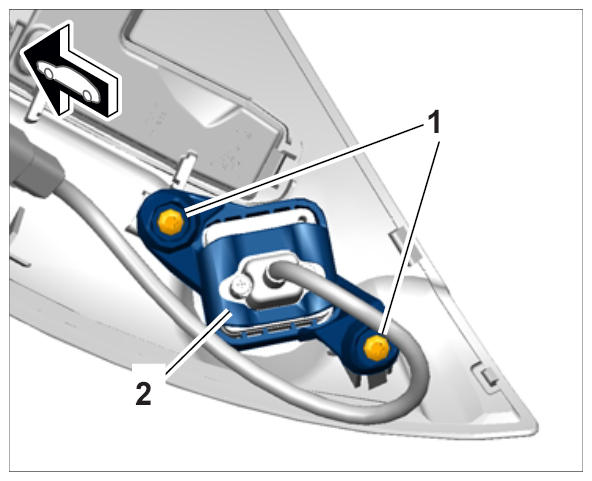

    Fig 3: Securing Camera Holder
    G09813873Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  5. Perform a function test.
