Removing Tweeter In Door Panel

NOTE: Voltage peaks
  • Risk of damage to load or to the control unit

→ Remove the ignition key and switch off load before disconnecting or removing load.

  1. Fold the front top corner of the insulating mat for the door panel aside.
  2. Unclip the tweeter at the three locking lugs -A-  and remove it -B-  .

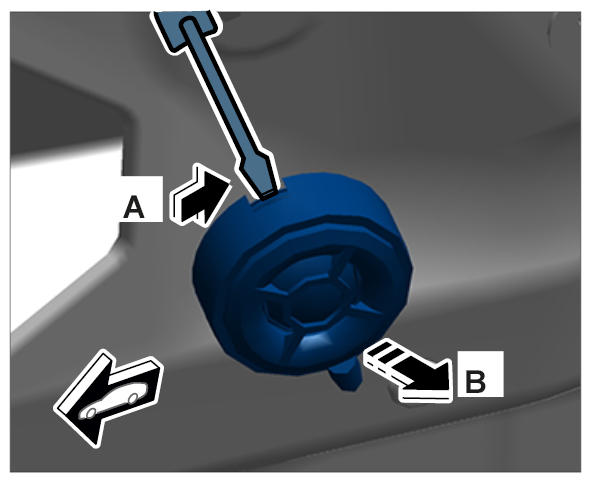

    Fig 1: Removing Tweeter
    G09813820Courtesy of PORSCHE CARS NORTH AMERICA, INC.
