Removing Low-Range Loudspeaker From Door Sub-Frame

→ Remove the ignition key and switch off load before disconnecting or removing load.

1. Release electric plug connection for loudspeaker -a-  and disconnect it -B-  .

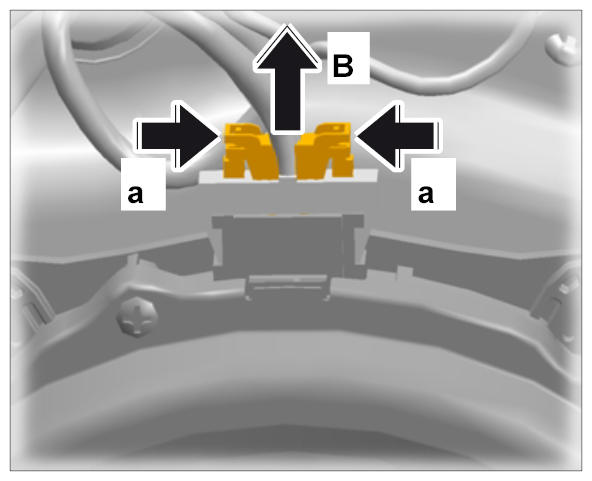

   Fig 1: Disconnecting Electric Plug Connection

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Information

   • A perfect seal is only guaranteed if the sealing surfaces of the door sub-frame are undamaged.
   • Do not damage or deform the sensor when drilling out blind rivets.
2. Carefully drill out the six blind rivets -1-  for the loudspeaker.

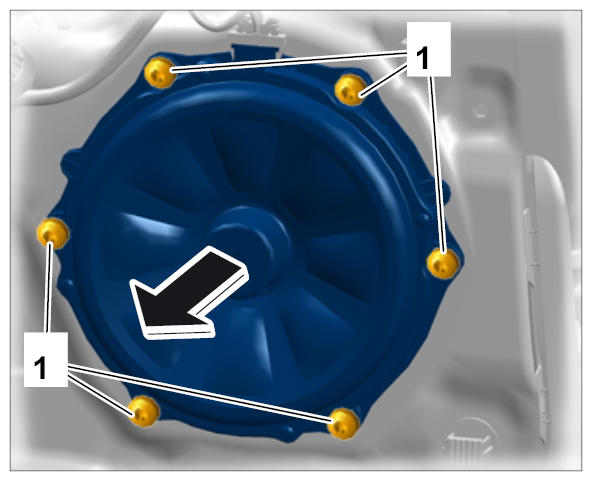

   Fig 2: Removing Loudspeaker

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Remove low-range loudspeaker.
4. Remove remaining seal for the low-range loudspeaker on the door sub-frame.
