Overview Of Antenna Lines

  1. PCM antenna line to connection point in roof
  2. Antenna line connection point in roof to TV tuner
  3. PCM antenna line to GPS/GSM antenna

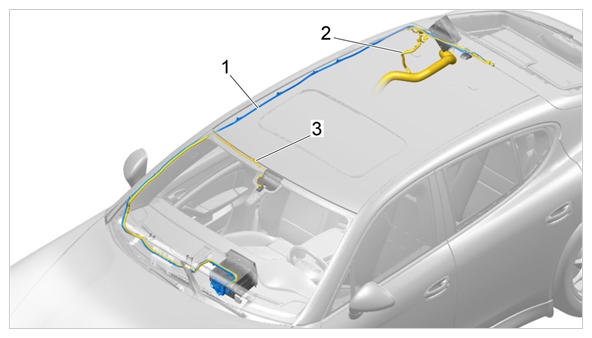

    4. Fig 1: Overview Of Antenna Lines
    G09813785Courtesy of PORSCHE CARS NORTH AMERICA, INC.
