Installing Car Radio

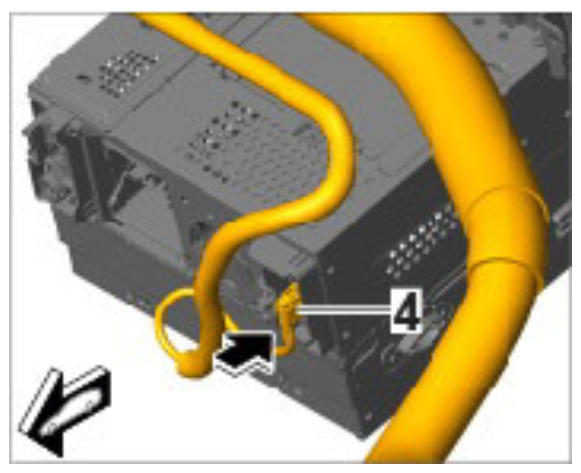

- Connect electric plug connection -4-
until the connector engages securely.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

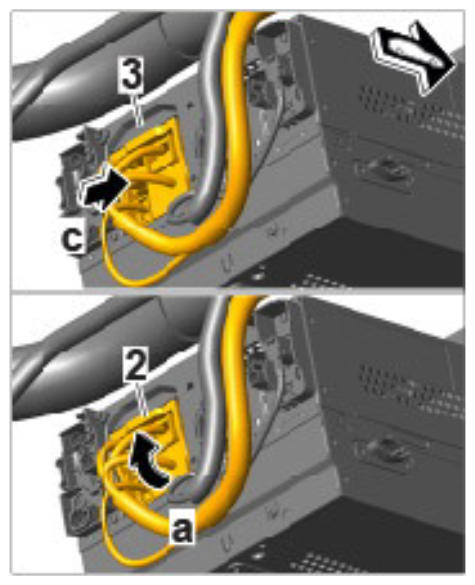

- Place the electric plug connection -3-
onto the car radio and lock the plug connection by closing -arrow C-
the securing clip -2-
. Make sure that the locking lug latches into place -a-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

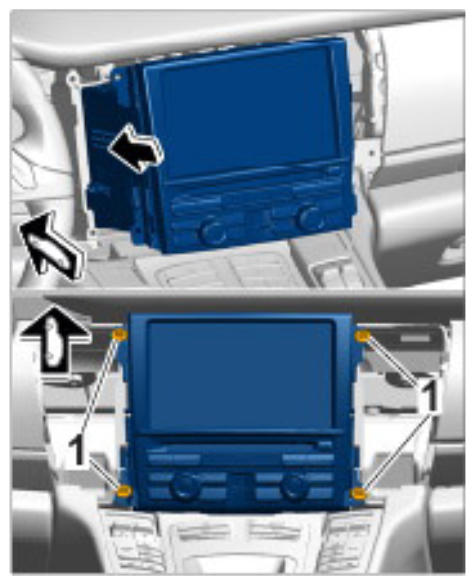

- Insert the car radio into the mounting.
- 3.1. Insert the car radio as far as it will go -arrow-
.
- 3.2. Make sure that the lines are not pinched.
- Position the four fastening screws -1-
and tighten them. Tightening torque 7 Nm (5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
