Removing Multimedia Interface

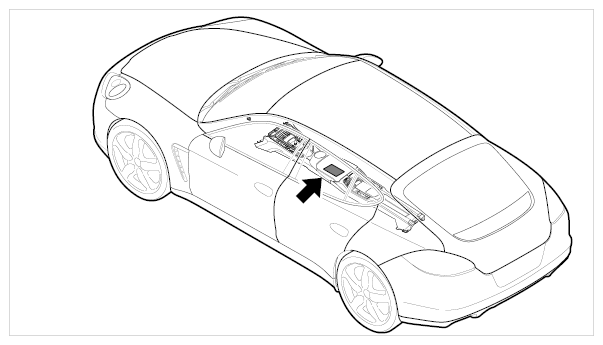

Fig 1: Identifying Multimedia Interface
G09813759Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Switch off ignition and remove remote control.
  2. Unclip multimedia interface -A-  and lift it up -B-  .
    Fig 2: Unclipping Multimedia Interface
    G09813760Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Release plug connections -a-  and pull them off.

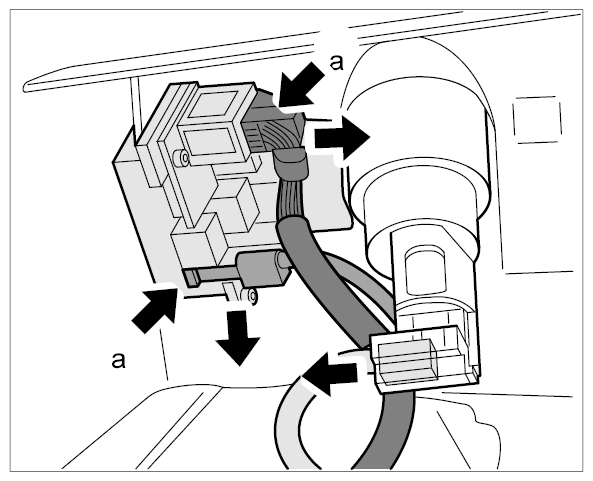

    Fig 3: Releasing Plug Connections
    G09813761Courtesy of PORSCHE CARS NORTH AMERICA, INC.
