Removing TV Tuner

Information

Electric plug connections can vary, depending on the equipment variant.

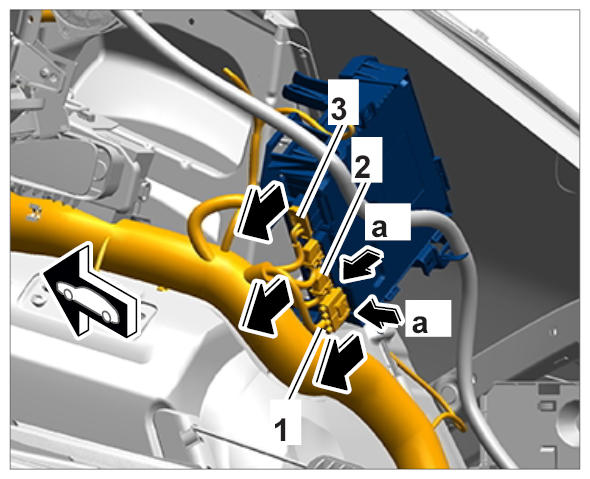

1. Release electric plug connections -1, 2, 3-  (-a-  ) and disconnect them -arrow-  .
   Fig 1: Disconnecting Electric Plug Connection

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

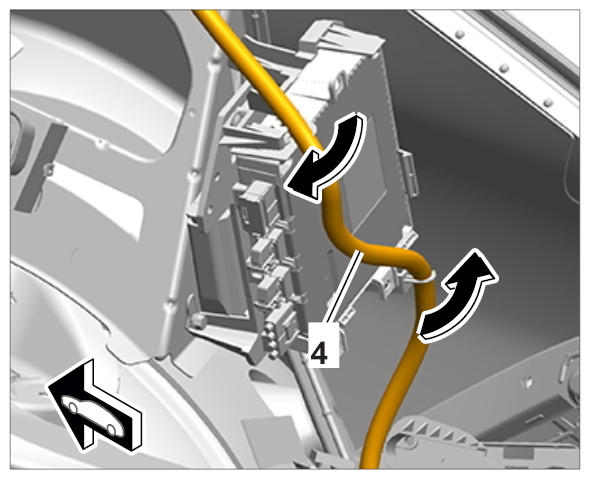

2. Unclip drain hose for sliding roof -4-  .
   Fig 2: Detaching Hose And Clamp

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

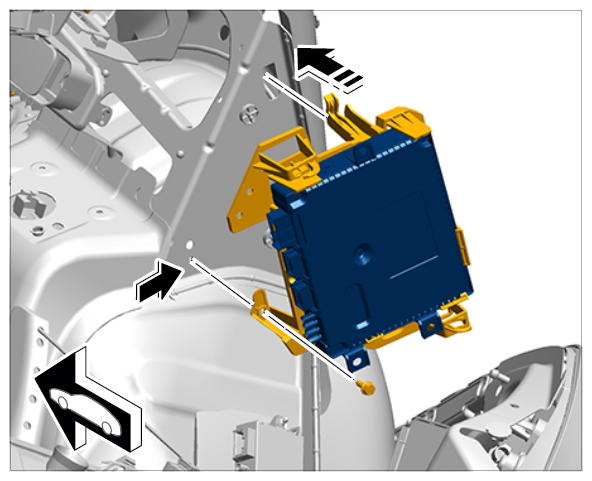

3. Loosen the fastening nut.
   Fig 3: Loosening Holder Fastening Nut

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

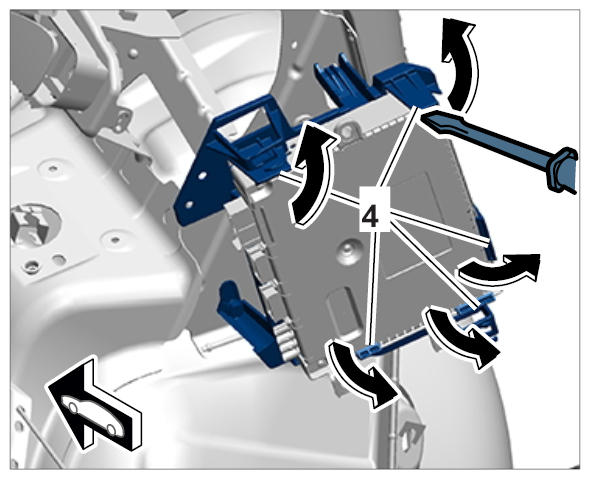

4. Unclip the clamp -4-  using a screwdriver.
   Fig 4: Removing Holder Clamp

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

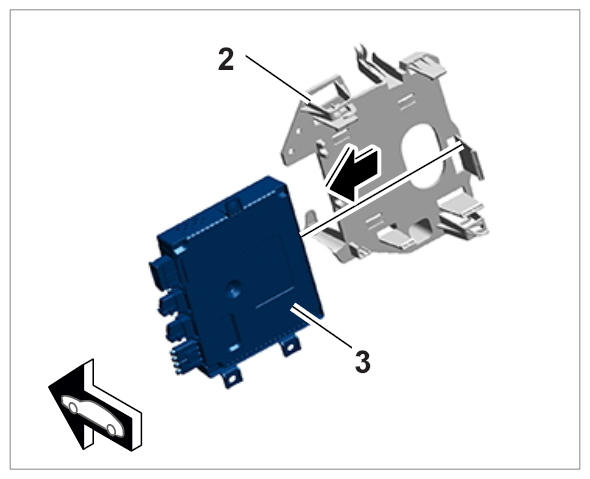

5. Loosen TV tuner -3-  from holder -2-  .
   Fig 5: Removing TV Tuner

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
