Installing TV Tuner

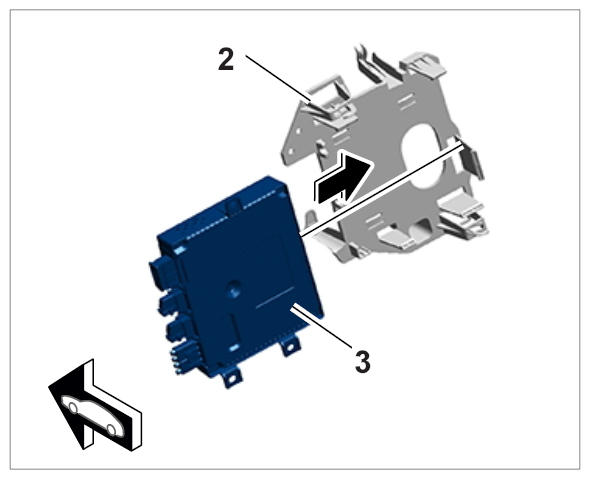

Slide TV tuner -3- into the holder -2- .

Fig 1: Installing TV Tuner
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

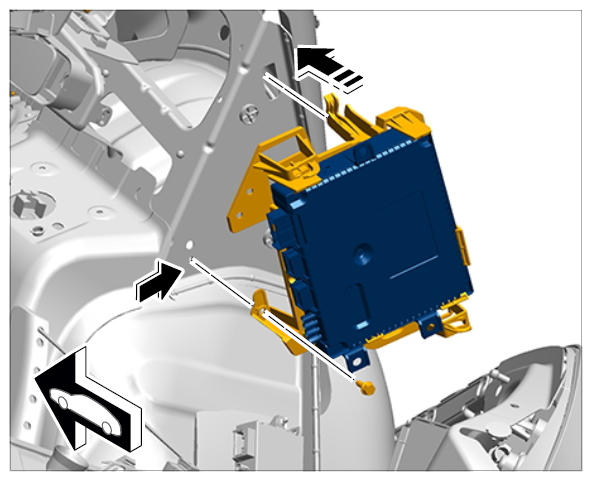

Insert tab and plug of holder into the openings provided.

Fig 2: Inserting Holder Tab And Plug Into Openings Provided
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Secure the holder with the two fastening screws. →→ Tightening torque: 10 Nm (7.5 ftlb.)

Fig 3: Securing Holder Tab And Plug Into Openings Provided
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

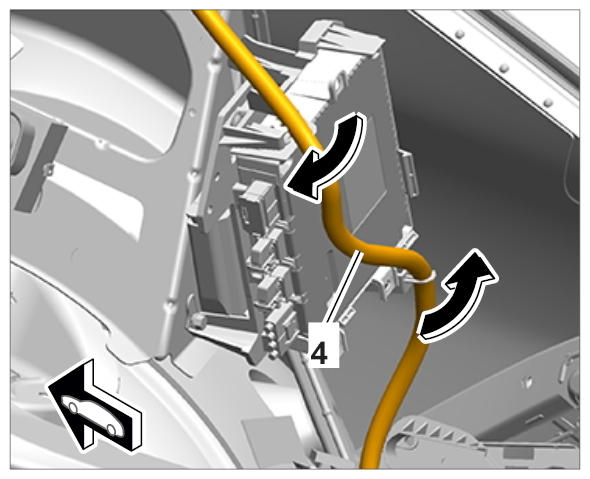

Clip in drain hose for sliding roof -4- .

Fig 4: Securing Hose Clip
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

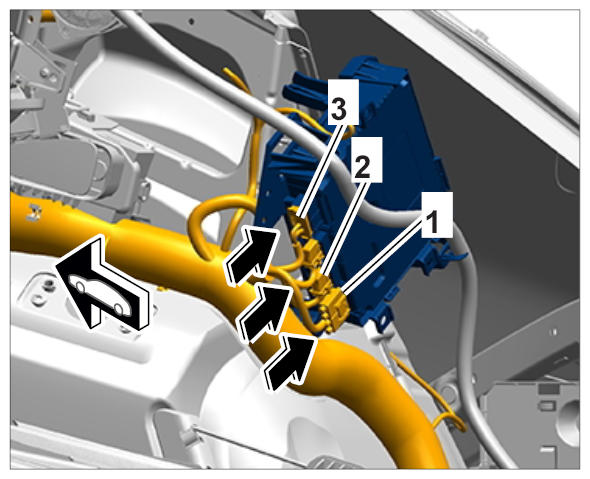

Connect electric plug connections until they engage securely.

Fig 5: Connecting Electric Plug Connections
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
