Removing Service Disconnector

Unclip service disconnector.
Detach cover -1- using a small screwdriver -2- and remove it from the green housing -3- .

Fig 1: Detaching Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Loosen fabric adhesive tape on the cable at the end of the connector and cut it off.

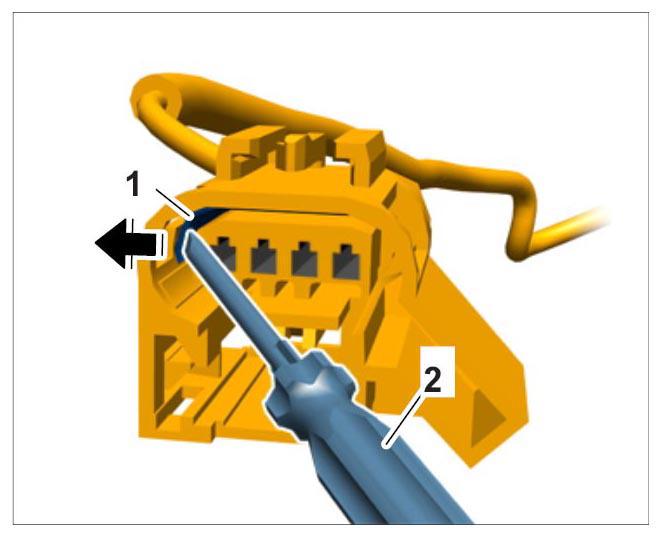

Release secondary lock using a small screwdriver.

Fig 2: Releasing Secondary Lock
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

CAUTION: Risk of damage to locking lugs

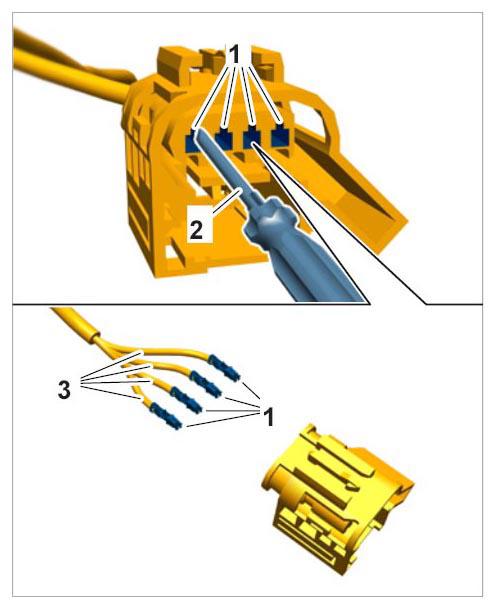

Release pins -1- using press-out tool VAS 1978/35-2 -2- and pull them out carefully at the cable -3- .

Fig 3: Pressing Out Pins
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

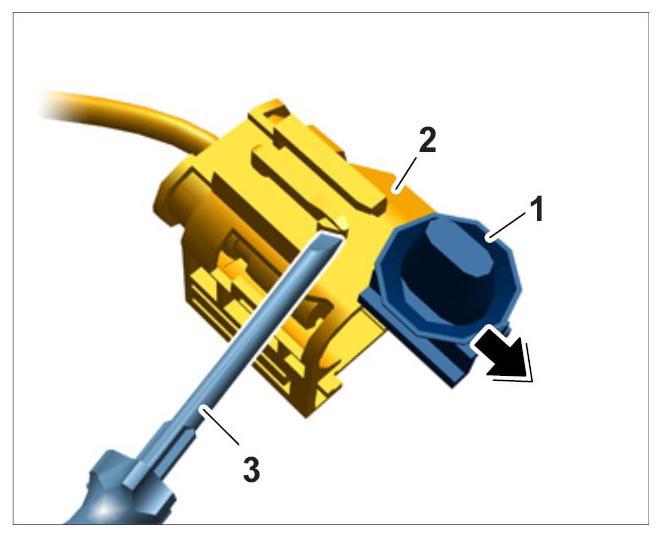

Release and pull off clips -1- on the old connector -2- using a thin screwdriver -3- .

Fig 4: Removing Clips
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
