57 - Door Front, Central Locking System -- PANAMERA (970)
>>
WM 572619 Removing And Installing Lock Peg (Except PANAMERA Executive, PANAMERA 4S Sport Edition, PANAMERA 4 Executive)
>>
Technical Values
Technical Values
Location
Description
Type
Basic value
Tolerance 1
Tolerance 2
Fastening screws for lock peg
Item 2
Tightening torque
23 Nm (17 ftlb.)

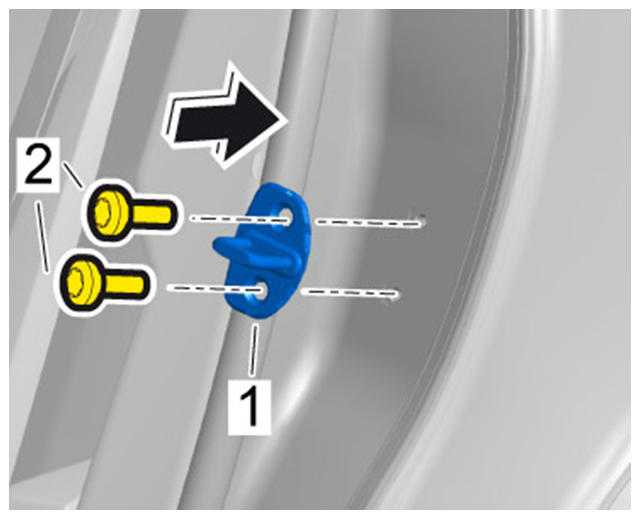

Installing lock peg
Fastening screws for lock peg
Adjusting lock peg, item 2
Tightening torque
23 Nm (17 ftlb.)

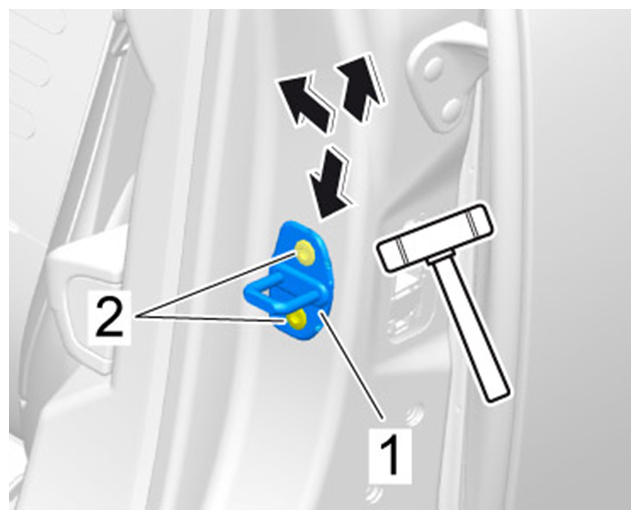

Adjusting lock peg
