Adapter Cable 9257/4

WARNING: This page is about a different car, the 2018 Porsche Macan and 2017 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
G11984256

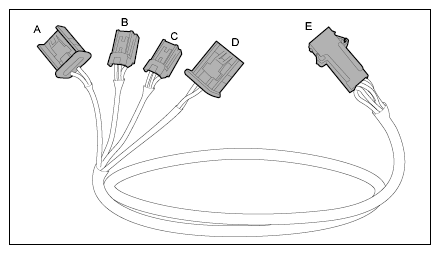

Overview of adapter cable 9257/4

  1. Purple marking on the connector - adapter for knee airbag
  2. Marking A - adapter for 1 st stage of driver's airbag unit
  3. Marking B - adapter for 2nd stage of driver's airbag unit
  4. Green marking on the connector - adapter not required
  5. Adapter for ignition device
