Removing Vacuum Pump

WARNING: This page is about a different car, the 2018 Porsche Macan and 2017 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

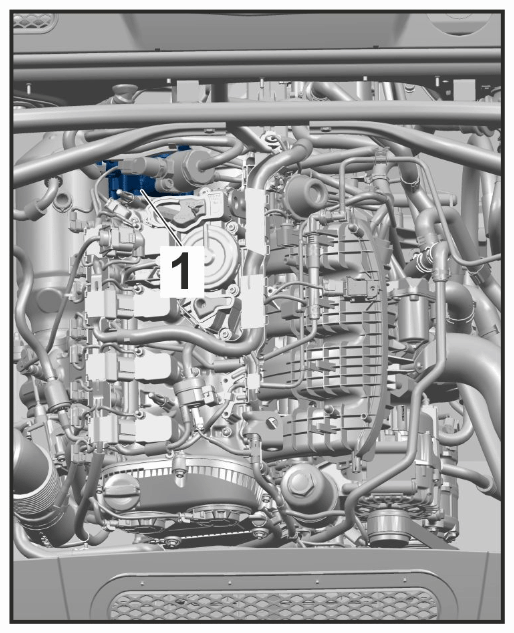

The vacuum pump -1-  is installed in the engine compartment, at the rear right in direction of travel.

G11977677

Installation position of vacuum pump

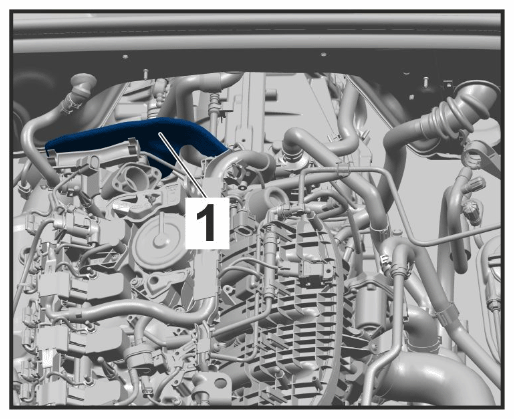

  1. Remove protective plate -1-  .
    G11977678

    Protective plate

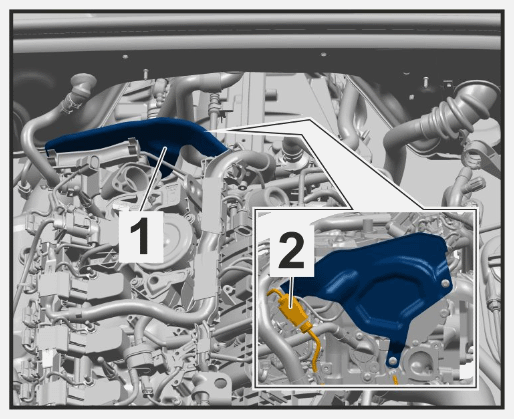

    1. 1.1. Release and disconnect electric connector -2-  .
      G11977679

      Electric connector

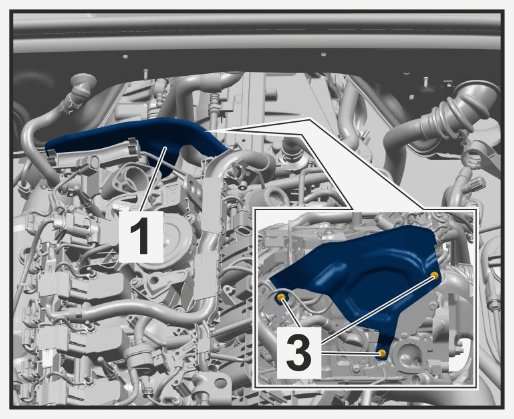

    2. 1.2. Unscrew fastening screws -3-  .
      G11977680

      Mounting for protective plate

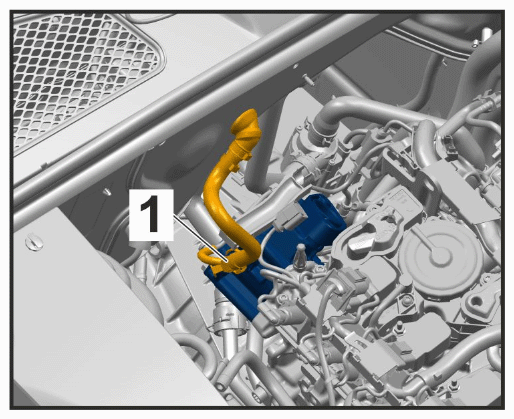

  2. Pull vacuum hose -1-  off the vacuum pump connection piece.
    G11977681

    Vacuum hose mounting

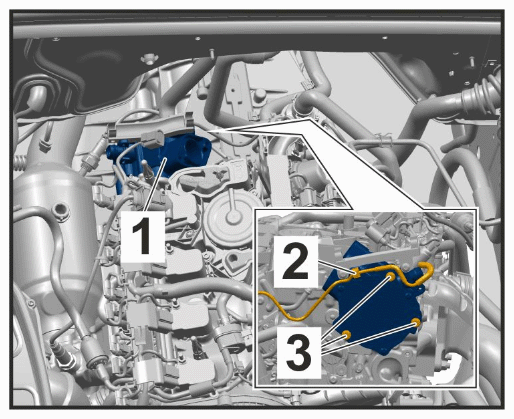

  3. Remove vacuum pump -1-  .
    G11977682

    Mounting for vacuum pump

    1. 3.1. Loosen cable holder -2-  .
    2. 3.2. Unscrew fastening screws -3-  .
    3. 3.3. Carefully pull the vacuum pump -1-  off the engine.

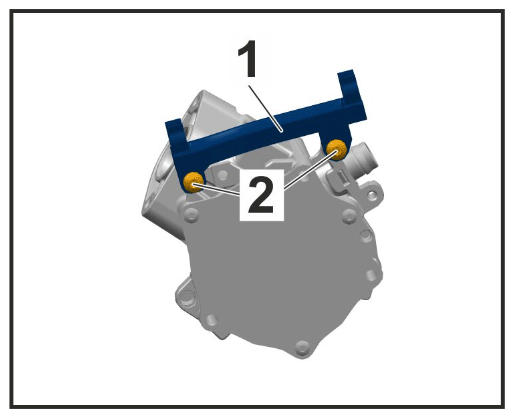

  4. If you are replacing the vacuum pump:  Convert holder -1-  on the vacuum pump.
    G11977683

    Mounting for holder

    1. 4.1. Unscrew fastening screws -2-  and tighten on the new vacuum pump.
