Removing Tail Light In Rear Lid
WARNING: This page is about a different car, the 2018 Porsche Macan and 2017 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
- Switch off ignition and pull remote control out of ignition lock.

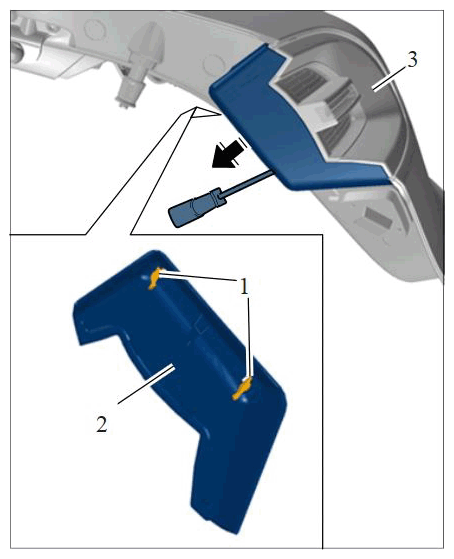

- Disengage locking lugs -1-
on the cover -2-
using a small screwdriver and pull cover off the tail light -3- in direction of arrow.
Removing cover

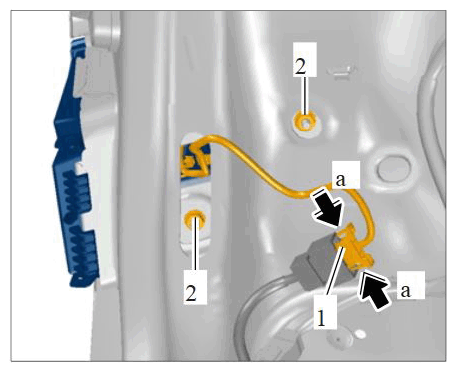

- Release electric plug connection -1-
(-a-
) and disconnect it.
Disconnect the electric plug connection
- Screw off fastening nuts -2- .

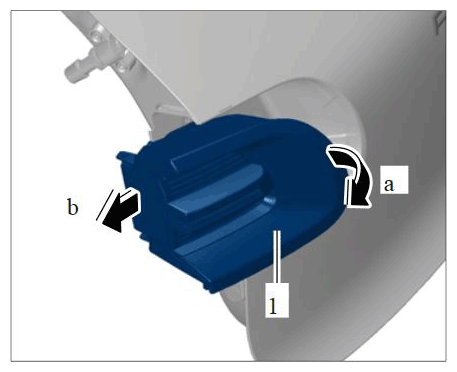

- Remove tail light -1-
.
- 5.1. Swivel the tail light out of the rear lid slightly -a- .
- 5.2. Carefully unhook the tail light at the sides from the seam of the rear lid -b- .
- 5.3. Remove tail light and guide electric line out through the opening in the rear lid.
Removing tail light from rear lid
