Adjusting Headlights

WARNING: This page is about a different car, the 2018 Porsche Macan and 2017 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Some of the repair illustrations show only one side of the vehicle or describe a similar component  .
  • Naturally, some steps also have to be performed on the opposite side of the vehicle as well  .
NOTE:

Read the operating instructions for the headlight aiming device and observe the following test and adjustment conditions:

  • Vehicle and headlight aiming device positioned on a horizontal, clean surface  .
  • Vehicle parked safely and ready to drive, empty, including all fluids and fuel  .
  • All doors and rear lid closed  .
  • Tyre pressure corresponds to the specified values  .
  • Driver's seat occupied by one person or a weight of 75 kg  .
  • Steering in straight-ahead position  .
  • For vehicles with air suspension: Vehicle level in center position  .
  • Vehicle and chassis have been bounced  .
  1. Align the headlight aiming device -1-  at a 90° angle to the longitudinal axis of the vehicle and position it at a distance of -a-  in front of the left headlight.
  2. Set the tilt angle of the light/dark limit of the dipped beam headlight on the headlight aiming device and align the collecting box with the center axis -b-  of the dipped beam headlight.

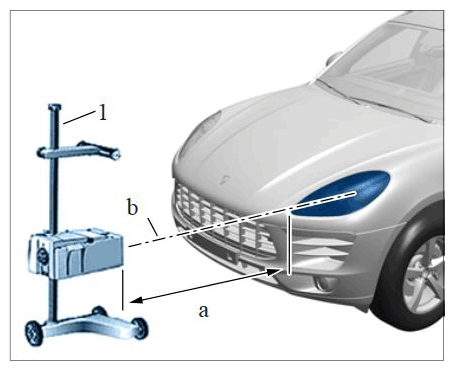

    G11984618

    Positioning headlight aiming device

  3. Switch on ignition and dipped beam headlights.
  4. Check the headlight setting.
    1. 4.1. The horizontal part of the light/dark limit must run along the dividing line -1-  .
    2. 4.2. The salient point -2-  of the horizontal part and right-elevated part of the light/dark limit must be positioned along the vertical line running through the central mark -3-. The bright core of the light beam is at the right of this vertical line.

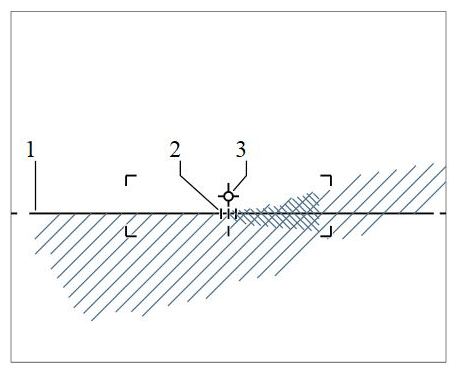

    G11984619

    Light distribution of dipped beam headlight

  5. Correct the headlight setting if necessary.
    1. 5.1. Adjust the height of the light/dark limit at the inner adjusting screw -1-  using a 6-mm Allen key.
    2. 5.2. Adjust the lateral setting of the light/dark limit at the outer adjusting screw -2-  using a long 6-mm Allen key.

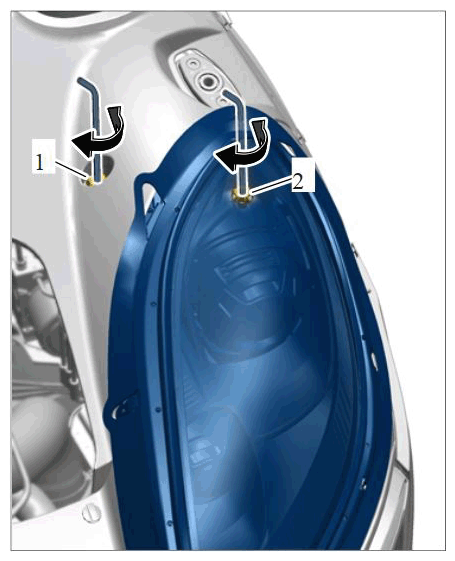

      G11984620

      Headlight adjusting screws

    6. For vehicles with Xenon headlights:

  6. Switch the ignition off and on again with the dipped beam headlights on.
  7. Check the headlight setting again.

    8. All vehicles:

  8. Repeat the test and adjustment procedure on the right headlight.
  9. Switch off dipped beam headlights and ignition.
