Removing Front Brake Disc

WARNING: This page is about a different car, the 2018 Porsche Macan and 2017 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Removal of brake calliper
  • Paint defects on brake calliper

→ Proceed with care when setting back the brake pads.

→ Protect brake calliper from paint defects using a suitable cloth.

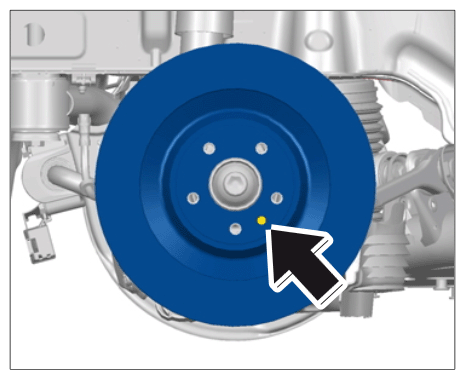

  1. Loosen fastening screw -arrow  - and remove brake disc.
    G11977596

    Mounting for brake disc
