Installing Front Brake Disc

WARNING: This page is about a different car, the 2018 Porsche Macan and 2017 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

Do not confuse left and right brake discs during assembly!

Distinguishing feature: Part number! The flat surface of the brake discs is marked with R = right or L = left.

  1. Check that all parts are in perfect condition (visual inspection) and replace them if necessary.
  2. Clean the flat and centring surfaces on the brake disc and wheel hub.

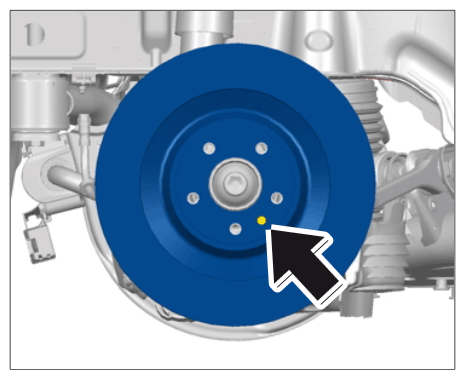

  3. Fit brake disc and tighten fastening screw -arrow  -. Tightening torque 10 Nm (7.5 ftlb.)
    G11977597

    Mounting for brake disc
