Installing Sealing Ring For Crankshaft Pulley

WARNING: This page is about a different car, the 2018 Porsche Macan and 2017 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

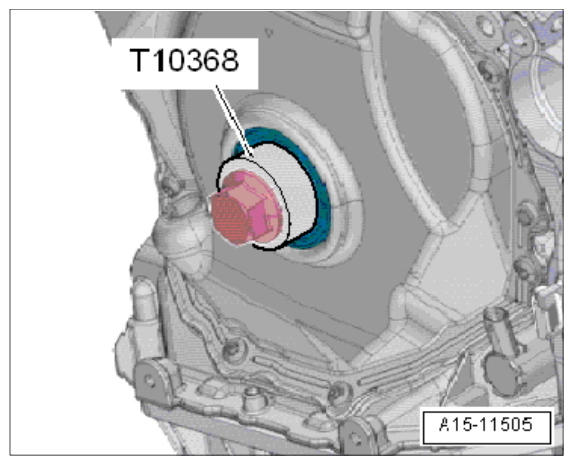

  1. Pressure piece T10368  must be screwed off. → Pressure piece -T10368-
    G11980364

    Pressure piece -T10368-

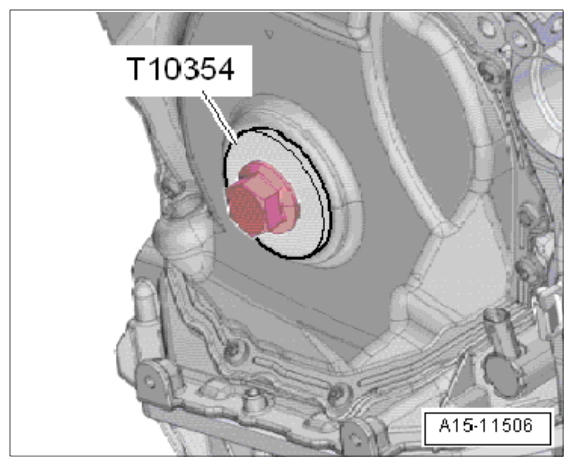

  2. Pull in new  sealing ring using pressure piece T10354  and fastening screw for pulley as far as it will go. → Pressure piece -T10354-
    G11980365

    Pressure piece -T10354-

  3. Pressure piece T10354  must now be removed.
