Installing Belt Tensioner

WARNING: This page is about a different car, the 2018 Porsche Macan and 2017 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install belt tensioner.

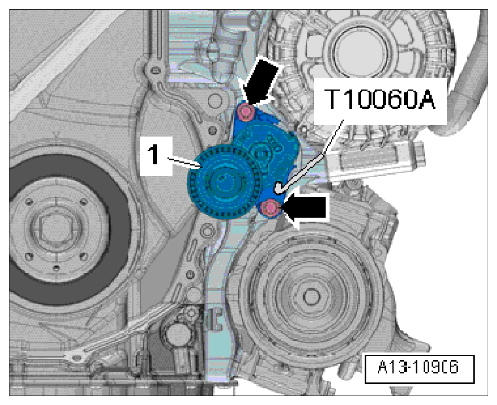

    1. 1.1. Position belt tensioner -1-  on holder for auxiliary units.
    2. 1.2. Fit and tighten new  fastening screws -arrows-  .

    Step 1:

    Step 2:

    G11980358

    Belt tensioner
