Mounting Porsche Doppelkupplung (PDK)

WARNING: This page is about a different car, the 2018 Porsche Macan and 2017 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Engine/transmission is supported on the oil pan.

Leaks at the oil pan

→ Use prescribed tools and aids.

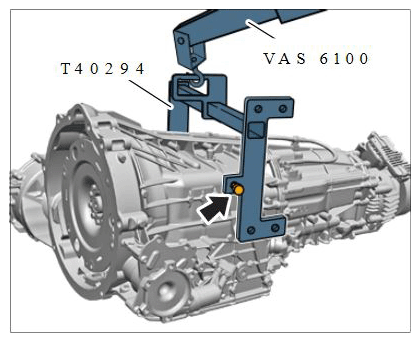

Use hook and support tool T40294 to secure the transmission to the workshop crane WE 1188 .
1. 1.1. Hook and support tool T40294 must be engaged in the housing bores on the right.
2. 1.2. Fit knurled screw -arrow- at the left on the transmission.

  Transmission on retaining device T40294

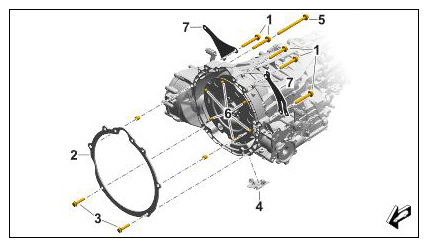

Mount transmission.
1. 2.1. Fit spacer -2- on the dowel sleeves on the engine.
  Check that the spacers are fitted at the correct position.
2. 2.2. Position transmission and fit and tighten fastening screws -1 and 5- with holders -7- .
3. 2.3. Tighten fastening screws -1 and 5- .

  Porsche Doppelkupplung (PDK)
Secure dual-mass flywheel on the drive plate.
1. 3.1. Fit fastening screws -arrow- .
  Turn the crankshaft a further 60° in direction of rotation of the engine .
2. 3.2. Tighten fastening screws -arrow- using socket-wrench insert 9836/1 . Tightening torque 60 Nm (44 ftlb.)
  Counter the crankshaft at the pulley when tightening the fastening screws.

  Dual-mass flywheel

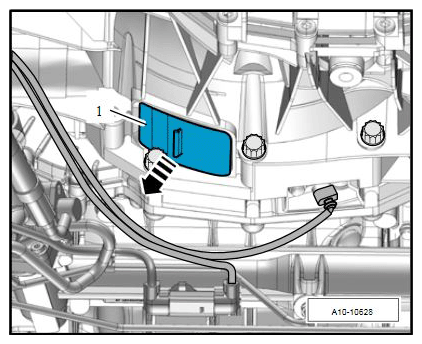

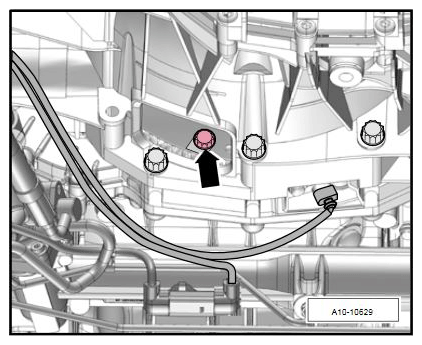

Install cover -1- on the underside of the transmission.

Cover on drive plate

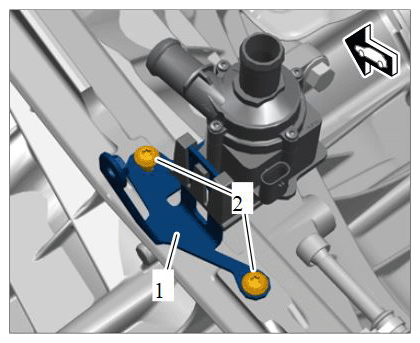

Fit holder -1- with auxiliary pump on the transmission and tighten fastening screws -2- .

Auxiliary pump holder

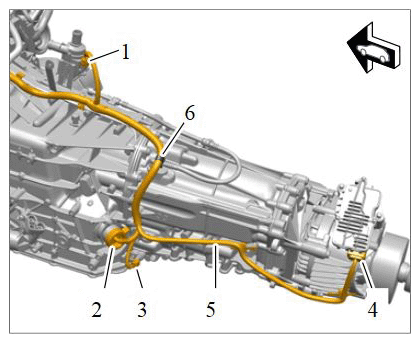

Connect electric plug connections -1...4- , clip in holder -6- and secure the wiring harness at the transmission.

Transmission wire harness
