Removing SDARS Antenna

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2019 Porsche 911, 2018 Porsche 911, 2017 Porsche 911, 2016 Porsche 911, and 2015 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

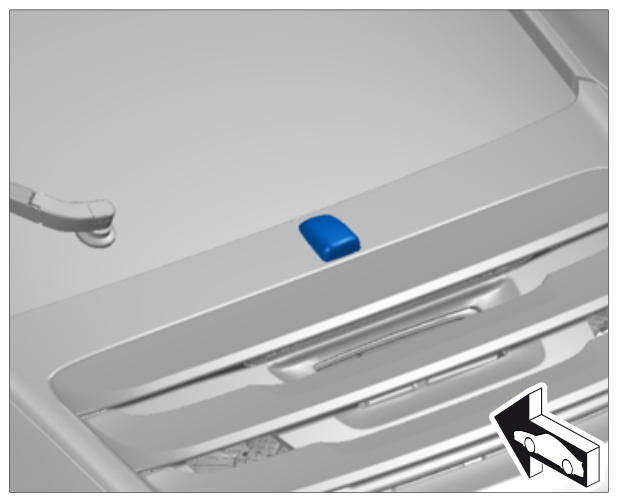

Fig 1: Identifying SDARS Antenna Position
G09998963
  1. Open the rear lid.
  2. Remove connectors -arrow-  .

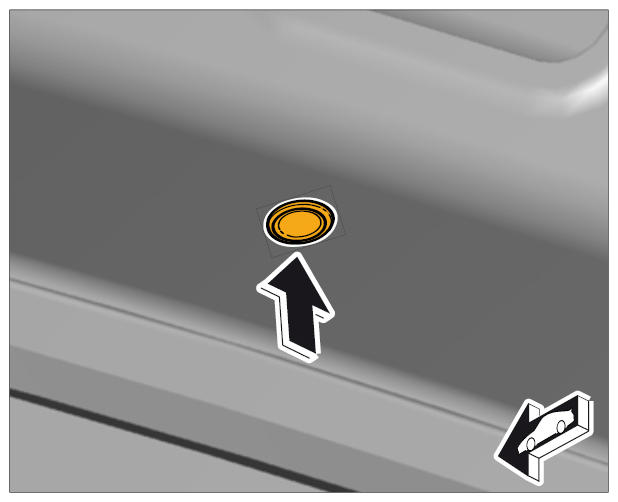

    Fig 2: Removing Plugs
    G09998964
  3. Remove SDARS antenna plug connection from the body aperture.
    1. 3.1. Release SDARS antenna plug connection -arrow-  and unplug connector.

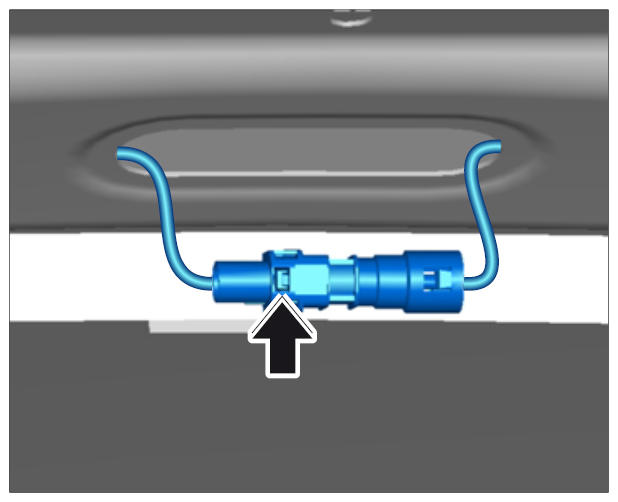

      Fig 3: Locating SDARS Antenna Plug Connection
      G09998965
  4. Unscrew fastening screw on SDARS antenna -arrow-  .

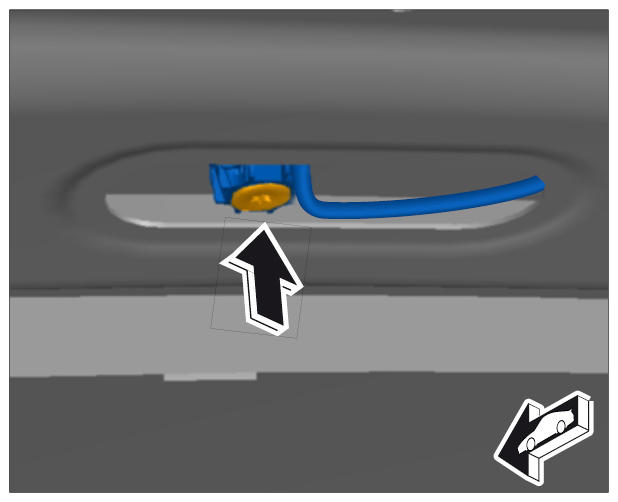

    Fig 4: Locating SDARS Antenna Plug Connection
    G09998966
  5. Remove SDARS antenna.

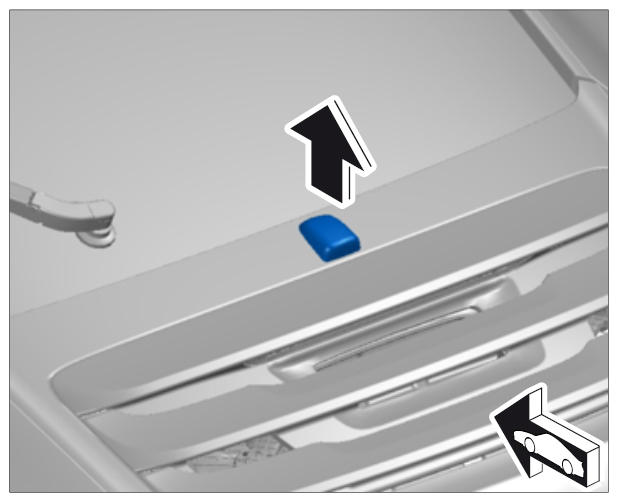

    Fig 5: Removing SDARS Antenna
    G09998967
