Installing SDARS Antenna
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2019 Porsche 911, 2018 Porsche 911, 2017 Porsche 911, 2016 Porsche 911, and 2015 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
Information
The SDARS antenna is supplied unpainted and must therefore be painted the color of the vehicle when replaced.
Information
Where components are fitted to body parts, make sure that the surfaces to be sealed are clean.
- Non-observance leads to the corrosion of body parts.
- Non-observance leads to the corrosion of electric plug connections and malfunctions.
- Fit SDARS antenna -arrow- .

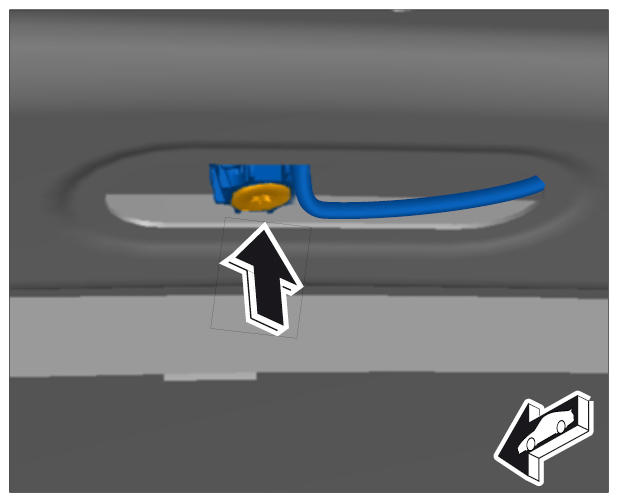

- Secure SDARS antenna using the fastening screw -arrow- . → tightening torque: 2 Nm+0.5 Nm

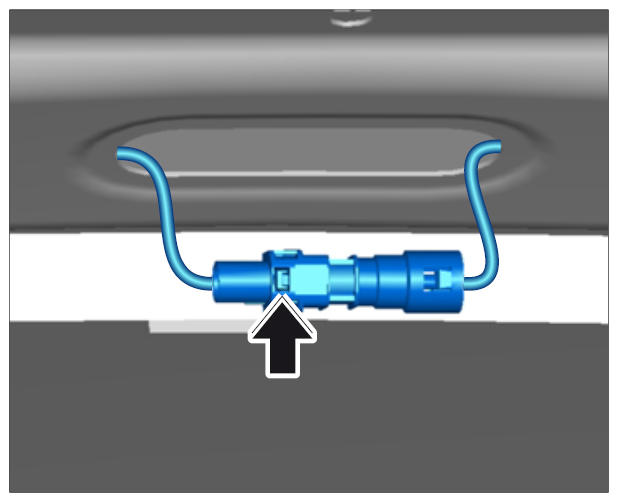

- Fit SDARS antenna plug connection until the connector locks securely -arrow-
.
- 3.1. Insert SDARS antenna plug connection into the body aperture.

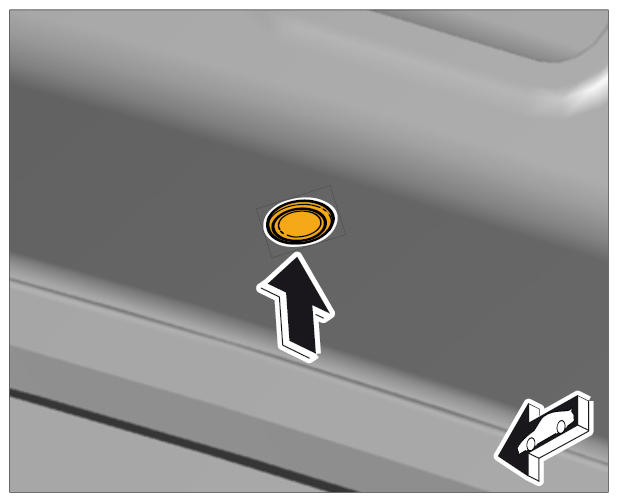

- Insert connectors -arrow- .
