Installing Front Roof Trim Panel

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2019 Porsche 911, 2018 Porsche 911, 2017 Porsche 911, 2016 Porsche 911, and 2015 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

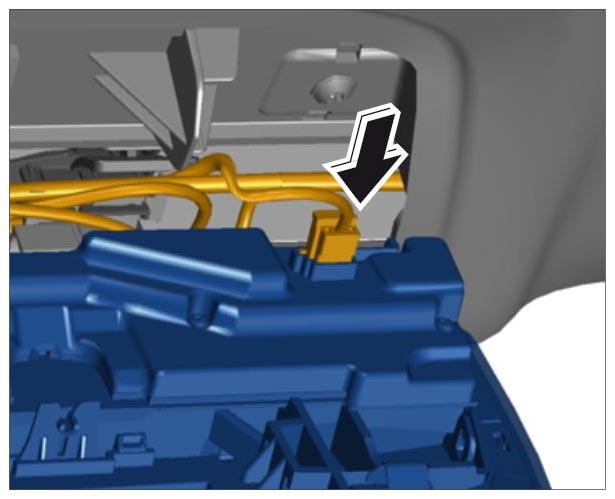

Push on plug connection -arrow- until it engages securely.

Fig 1: Securing Wire Harness
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

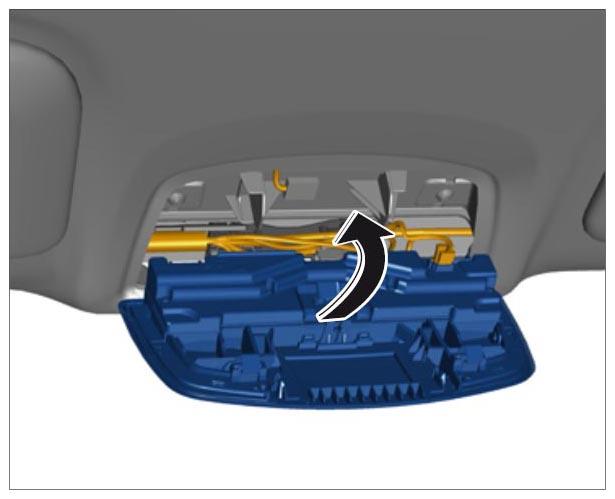

Engage roof trim panel at the two retaining clips -arrow- .

Fig 2: Engaging Headliner
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

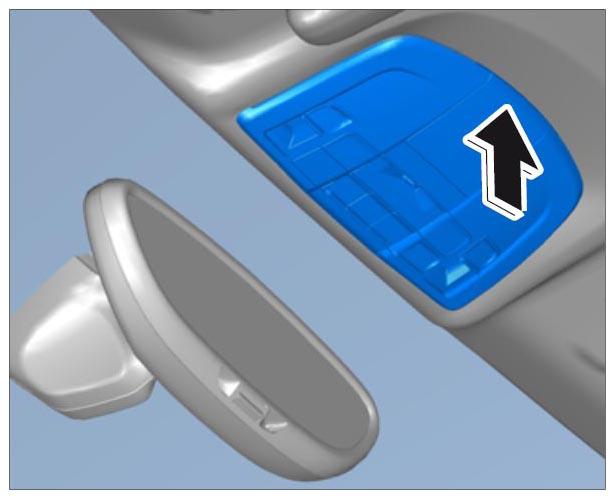

Tilt roof trim panel into position and clip it in place -arrow- until it is securely engaged.

Fig 3: Clipping Roof Trim Panel Into Place
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
