Removing Convertible Top Control Unit

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2019 Porsche 911, 2018 Porsche 911, 2017 Porsche 911, 2016 Porsche 911, and 2015 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Voltage peaks

Risk of damage to electrical load or to the control unit

Information

Always comply with the regulations for handling ESD-sensitive components!

Assembly work may only be carried out if the mechanic is wearing the working clothes and shoes approved by Porsche.
The new part must only be removed from the ESD (electrostatic discharge) protective packaging just before installation and at the position at which the part is to be installed.
Never touch the electric pins and plug contacts.

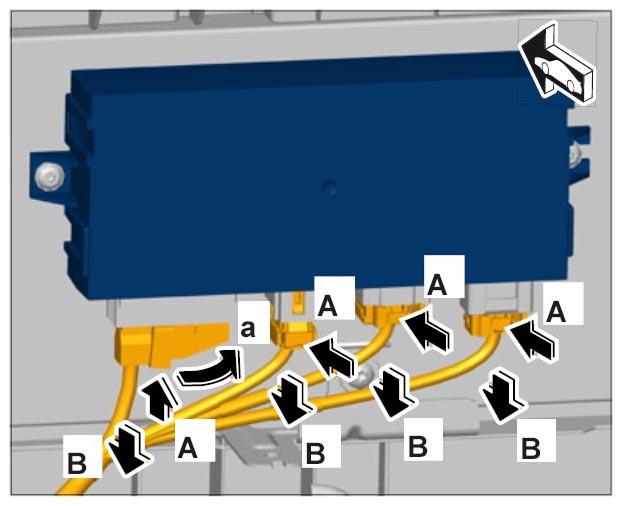

Release electric plug connection from the convertible top control unit -A- , fold over retaining bar -a- and pull it off -B- .

Fig 1: Disconnecting Wiring Harness Plug Connections
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

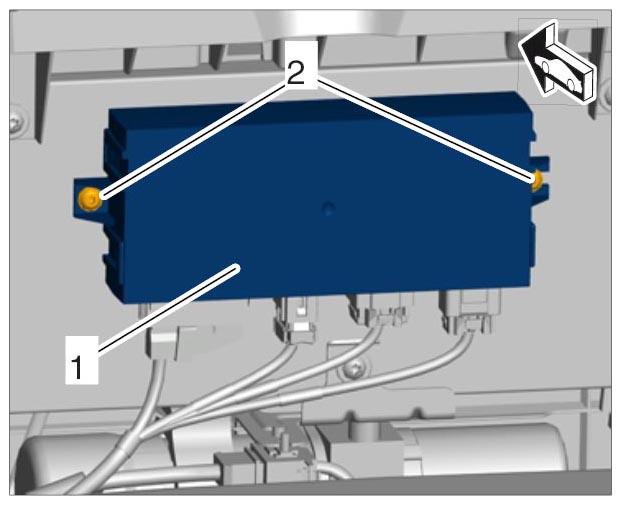

Loosen fastening screws -2- and remove control unit -1- .

Fig 2: Locating Control Unit And Fasteners
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
