Removing Hinge For Convertible-Top Compartment Lid

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2019 Porsche 911, 2018 Porsche 911, 2017 Porsche 911, 2016 Porsche 911, and 2015 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

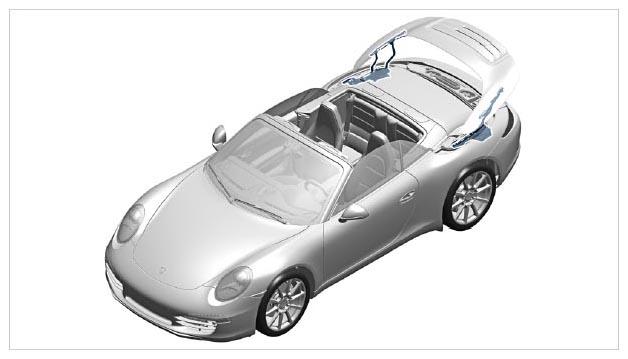

Fig 1: Locating Hinge For Convertible-Top Compartment Lid Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

CAUTION: Incorrect handling of hydraulic system

Risk of damage to hydraulic system
Malfunction in hydraulic system

→ Do not bend, trap or crush hydraulic lines.

→ Protect hydraulic system from contamination.

Fold convertible-top compartment trim in slightly.
Guide wiring harness for convertible-top compartment lid out through the hinge.
Loosen safety clips -1- .

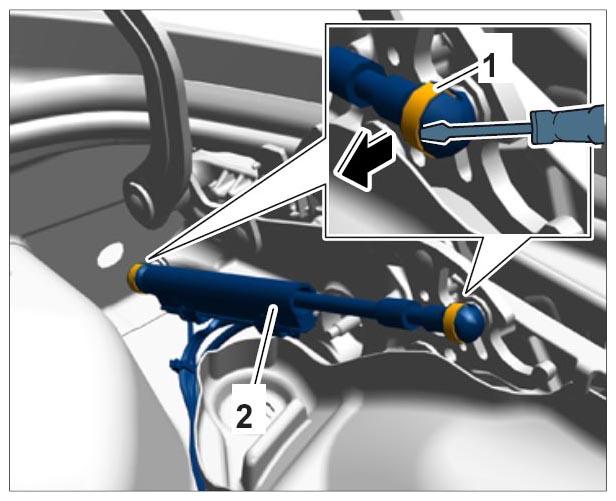

Fig 2: Removing Hydraulic Cylinder
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Disengage hydraulic cylinder -2- and set it down on the convertible-top compartment.
Determine installation position of the hinge.

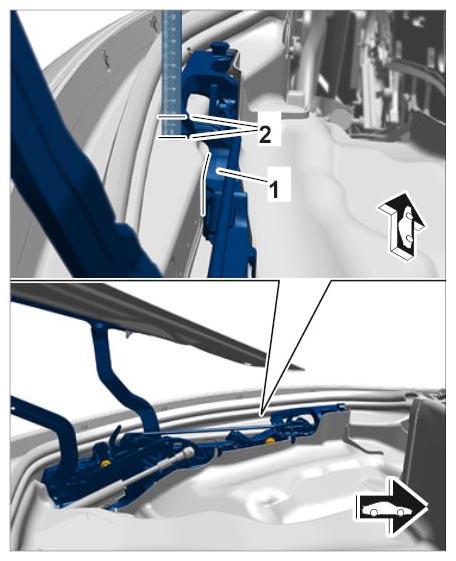

Fig 3: Identifying Hydraulic Cylinder Hinge Marking
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 5.1. Mark the contour -1- of the hinge using a suitable tool.
2. 5.2. Determine the adjustment height of the hinge -2- using a steel rule and write it down.
Unscrew fastening nuts -1- and fastening screw -2- and remove the hinge.

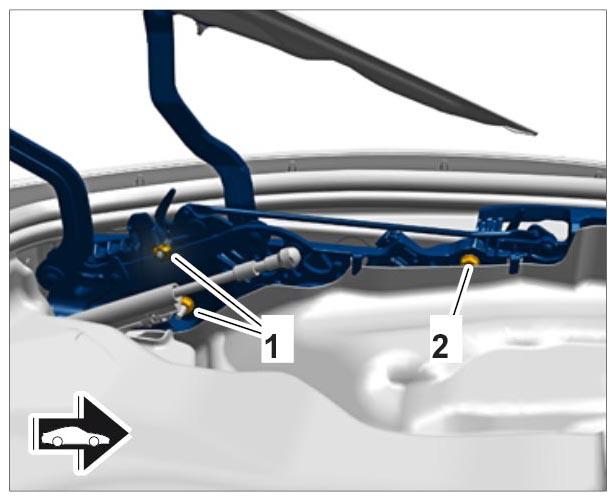

Fig 4: Identifying Hinge Fasteners
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
