Removing Additional Flap (Module)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2019 Porsche 911, 2018 Porsche 911, 2017 Porsche 911, 2016 Porsche 911, and 2015 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

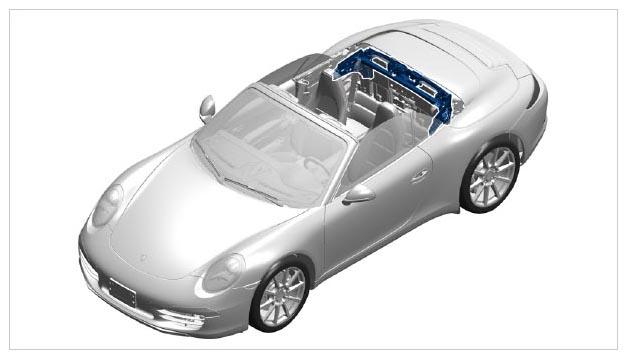

Fig 1: Locating Additional Flap Position (Module)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Perform emergency operation of additional flaps as described in the Driver's Manual.
1. 1.1. Loosen motor.
2. 1.2. Move additional flaps to the open position.
Disconnect plug connection for motor.

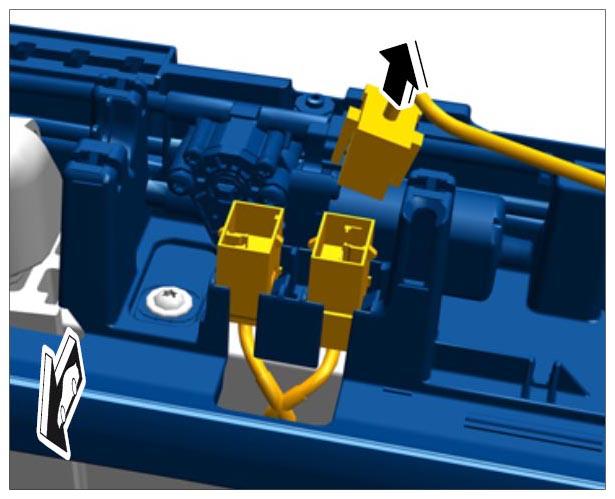

Fig 2: Disconnecting Wiring Harness Plug Connection
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unclip connector housing.

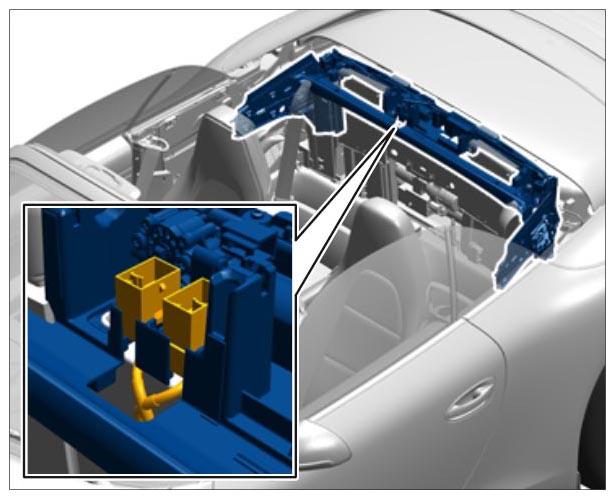

Fig 3: Identifying Connector Housing
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Screw is accessible through the cut-out in the additional flap.

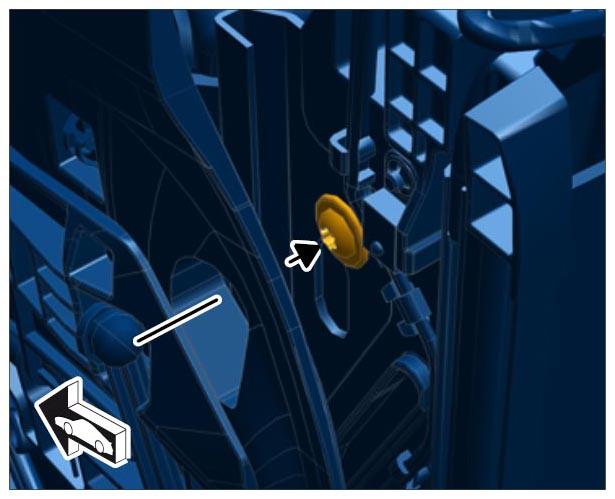

Fig 4: Locating Threaded Joint Of Additional Flap
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unscrew and remove fastening screws at the sides.

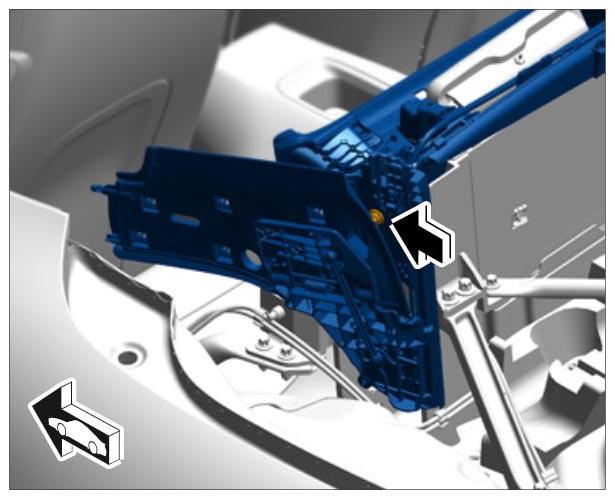

Fig 5: Locating Side Screws Of Additional Flap
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unscrew fastening screws at the top.

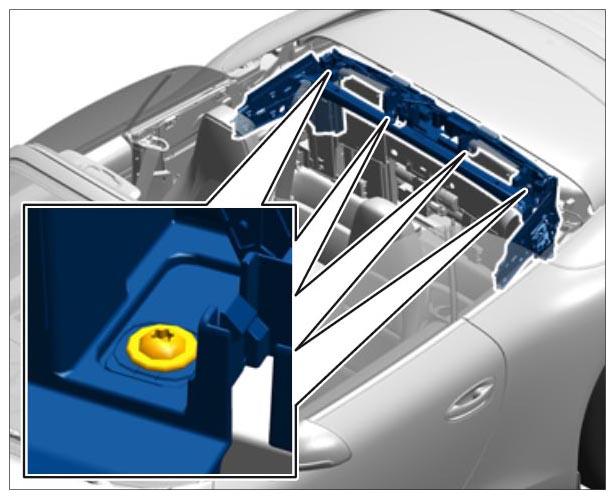

Fig 6: Identifying Screws Of Additional Flap
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unscrew rear fastening screws.

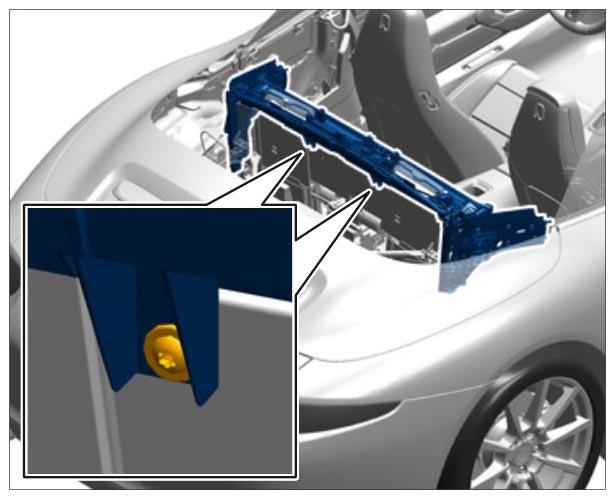

Fig 7: Identifying Rear Fastening Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Pull additional flaps with drive mechanism up and off.
Feed out belt strap.

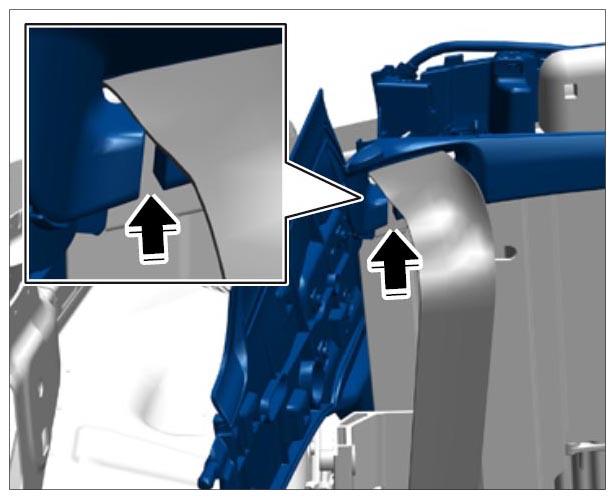

Fig 8: Pulling Out Belt Strap
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
