Removing Microswitches On Convertible-Top Compartment Lid Cylinders

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2019 Porsche 911, 2018 Porsche 911, 2017 Porsche 911, 2016 Porsche 911, and 2015 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Information

Some of the repair illustrations show only one side of the vehicle.
Naturally, some steps also have to be performed on the opposite side of the vehicle as well.

Disconnect wire harness.

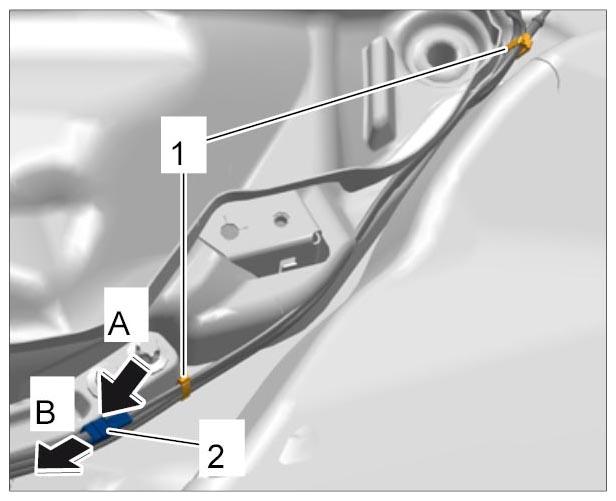

Fig 1: Disconnecting Wire Harness
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 1.1. Cut tie-wrap -1- .
2. 1.2. Release plug connection -A- and disconnect it -B- .
  Information
  - During assembly work, get another person to hold the lid open.
Loosen safety clips on the hydraulic cylinder -2- using a suitable tool -arrow- .

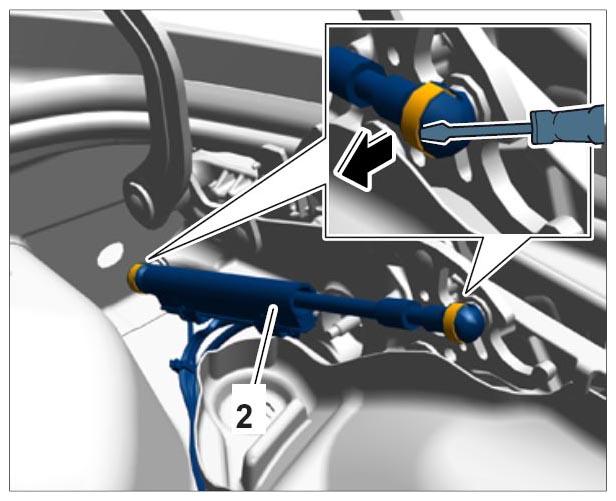

Fig 2: Removing Hydraulic Cylinder
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove hydraulic cylinder -2- and place it in the vehicle.
Release retaining clips -1- on the microswitches and pull them off -A- .

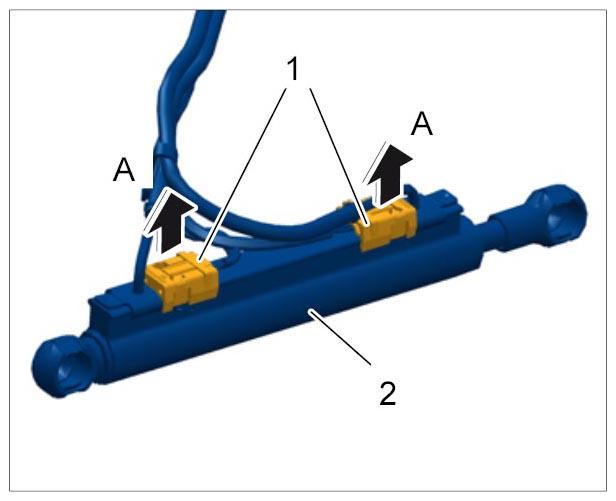

Fig 3: Removing Microswitches
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove microswitch from hydraulic cylinder -2- .
