Installing Lower Side Retaining Strip

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2019 Porsche 911, 2018 Porsche 911, 2017 Porsche 911, 2016 Porsche 911, and 2015 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Fit retaining strip -2-  .

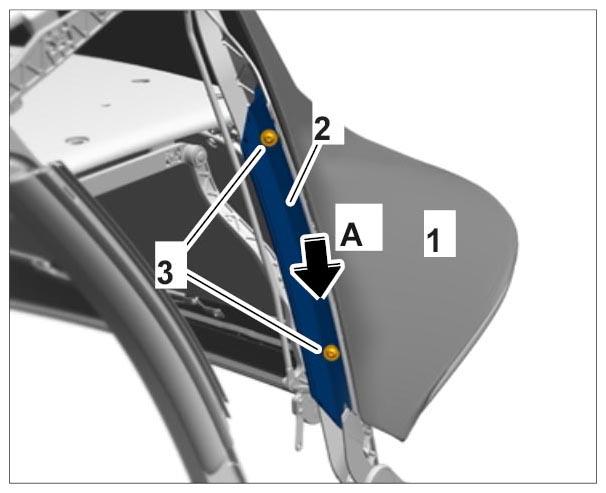

    Fig 1: Installing Lower Side Retaining Strip
    G09994552Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Information

    A washer is fitted under the upper fastening point.

  2. Fit new fastening screws -3-  .
  3. Press the retaining strip down completely. -arrow A-
  4. Tighten fastening screws to the specified tightening torque. Tightening torque 9.7 Nm (7.5 ftlb.)
