Removing Motor For Rear Side Section Flaps

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2019 Porsche 911, 2018 Porsche 911, 2017 Porsche 911, 2016 Porsche 911, and 2015 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Remove right cap -1- .

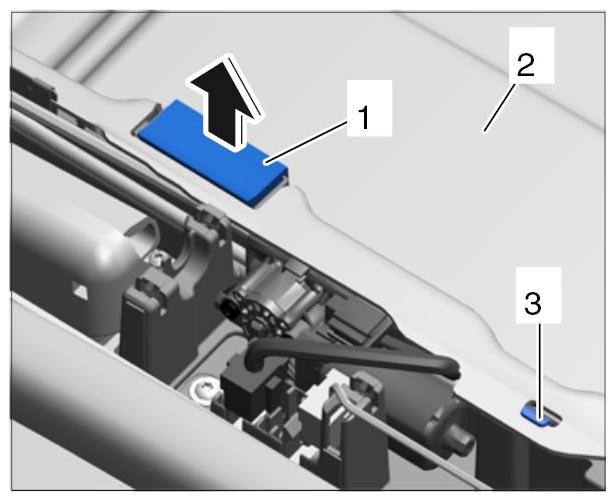

Fig 1: Loosening Convertible Top Compartment Trim
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unhook convertible top compartment trim -2- from locking lug -3- and lift with care.
Unscrew fastening screw -2- and carefully pull up casing for rear side section flaps -1- .

Fig 2: Identifying Rear Side Section Flaps And Screw
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Release and pull off electric plug connection -1- on flap -3- motor.

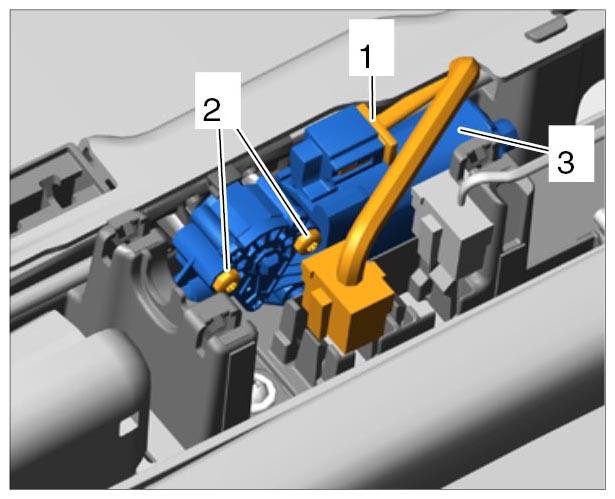

Fig 3: Identifying Flap Motor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Loosen and remove flap motor.
1. 5.1. Undo fastening screws -2- .
2. 5.2. Carefully lever off flap motor -3- using a suitable tool.
