Installing Motor For Rear Side Section Flaps

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2019 Porsche 911, 2018 Porsche 911, 2017 Porsche 911, 2016 Porsche 911, and 2015 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Information

Before installing the flap motor, the rear side section flaps must be fully retracted (lower end position) to ensure synchronous operation.

Push the rear side section flaps -1- down by hand -A- and put in the "Convertible top closed" end position.

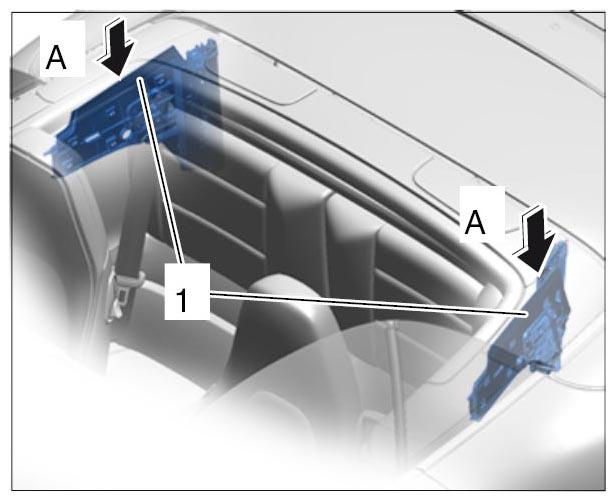

Fig 1: Moving Rear Side Section Flaps To End Position
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install the flap motor.
1. 2.1. Place flap motor -3- on the guide pin.
2. 2.2. Turn flap motor -3- slightly until the pinion engages.
3. 2.3. Tighten fastening screws -2- . Tightening torque 5 Nm (3.5 ftlb.)

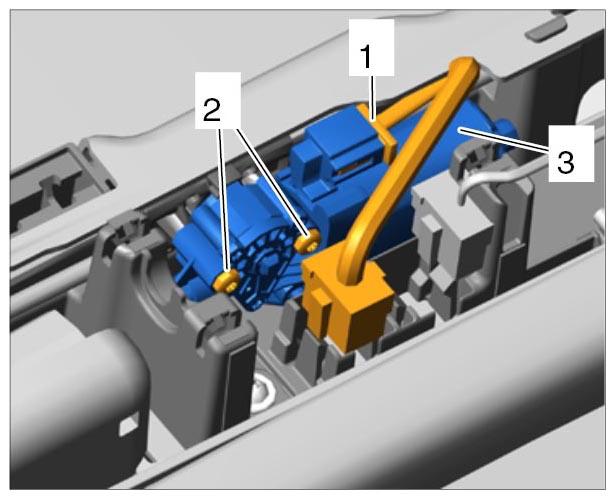

  Fig 2: Identifying Flap Motor
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Insert the electrical plug connection -1- in the flap motor -3- until it clicks audibly into place.
Push casing for rear side section flaps -1- down carefully and tighten using fastening screw -2- . Tightening torque 2.5 Nm (2 ftlb.)

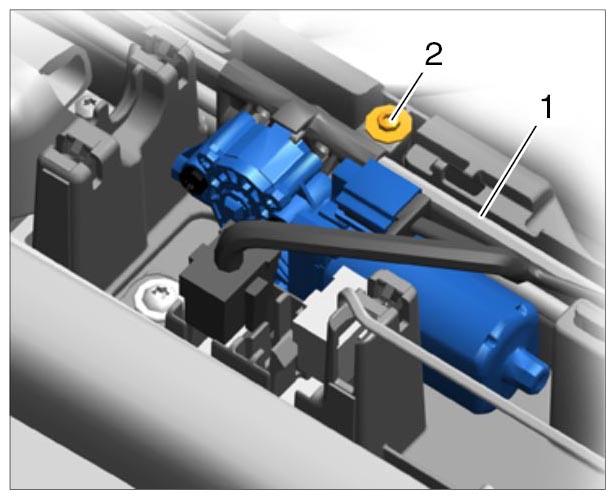

Fig 3: Identifying Casing For Rear Side Section Flaps
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fasten the convertible top compartment trim -2- to the locking lug -3- .

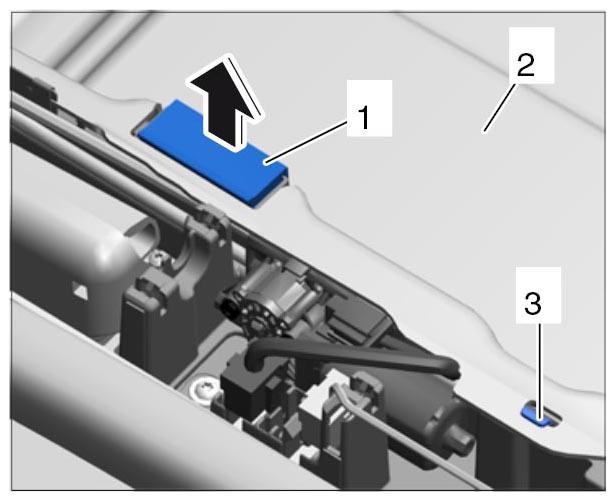

Fig 4: Removing Convertible Top Compartment Trim
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install the right cover -1- .
